Запчасти Case IH 5140 (80.180.AP[01]) - VAR - 425312, 425329, 722983, 425077, 425313, 425330 - UNLOADING TUBE & AUGER ASSY, STANDARD & EXTENDED WEAR (80) - CROP STORAGE/UNLOADING

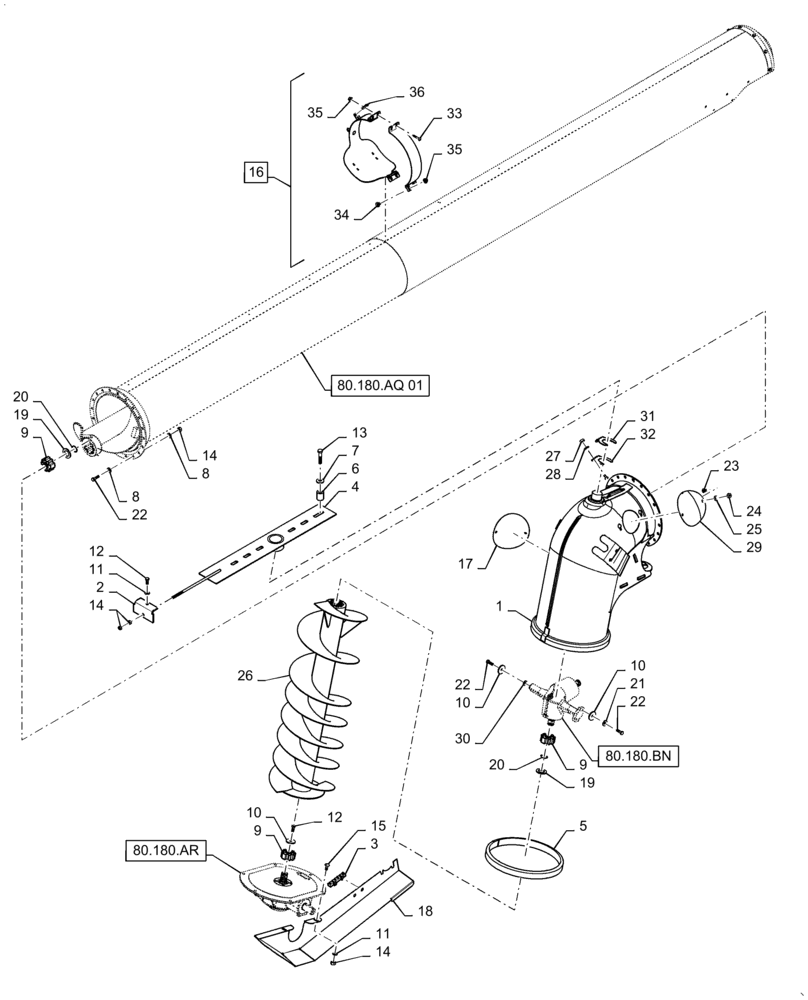

Схема запчастей Case IH 5140 - (80.180.AP[01]) - VAR - 425312, 425329, 722983, 425077, 425313, 425330 - UNLOADING TUBE & AUGER ASSY, STANDARD & EXTENDED WEAR (80) - CROP STORAGE/UNLOADING
10
19
10
12
21
14
17
30
18
22
3
34
1
5
27
35
80.180.aq 01
9
20
7
33
80.180.ar
19
15
4
9
28
8
24
9
12
14
16
14
20
2
29
10
6
26
25
36
31
32
11
22
8
11
80.180.bn
35
22
13
23

Артикул

Название

Примечание

Количество

1

84126361

ELBOW,Unloading Auger

Painted

1шт.

2

84072832

BRACKET

Angle

1шт.

3

3102155R1

HOLDER

Shear Bolt

1шт.

4

47420695

PLATE

Bearing

1шт.

5

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

6

87284863

SPACER,38mm OD x 46mm OAL

6шт.

7

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

6шт.

8

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

9

87011705

HUB,21T

Auger

3шт.

10

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

13

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

27шт.

15

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

16

84248894

SECURING BAND

Unload Tube, Incl 33 - 36

1шт.

17

87552532

COVER

Elbow

1шт.

18

87476437

GUARD

Unloader Chain Drive

1шт.

19

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

20

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

21

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

22

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

22шт.

23

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

24

9706690

NUT,M8 x 1.25, Cl 8

4шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

84447940

AUGER

Standard Wear, VAR - 425312, 425329, 722983

1шт.

26

87756536

AUGER

Extended Wear, VAR - 425077, 425313, 425330

1шт.

27

100016

NUT,M10 x 1.5, Cl 8

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

29

87552534

COVER

Elbow Access

1шт.

30

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

31

87620925

SHIM,3.2mm Thk

1шт.

32

87627724

SHIM,1.7mm Thk

1шт.

33

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

34

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

35

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

36

87106279

PIN,6.4mm OD

Linch

1шт.

Выбрано товаров: 37
