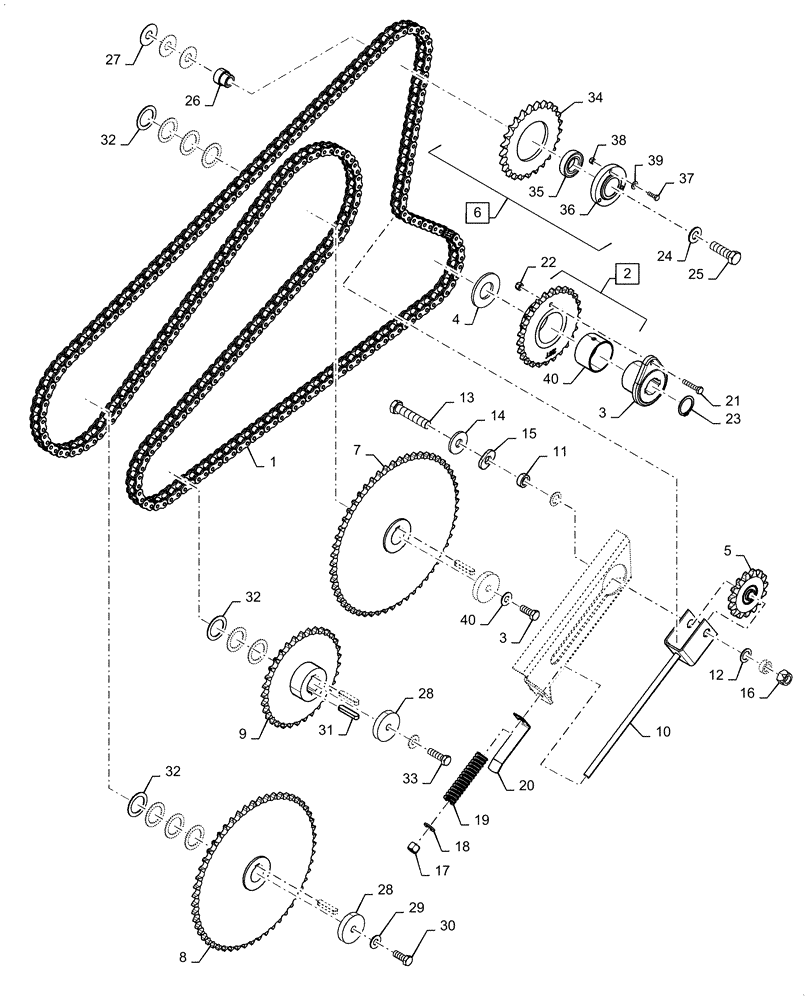

Запчасти Case IH 5140 (80.175.AD[02]) - UNLOADING TUBE CHAIN, DRIVE, TENSIONER (80) - CROP STORAGE/UNLOADING

1

87707588

CHAIN (AG),60H, 266 Links x 19.05mm = 5067.3mm

Unloader Drive, 2.5 BPS

1шт.

2

84398912

SPROCKET

26T, Incl 40

1шт.

3

84073176

SHEAR BOLT BUSHING

Sprocket

1шт.

4

84073175

WASHER,35.1mm ID x 71.5mm OD x 5mm Thk

1шт.

5

86627639

SPROCKET,15T

15T

1шт.

6

86565318

SPROCKET,25T

Incl 34 - 39

1шт.

7

87705471

SPROCKET ASSY.

Rear Driven, 55T

1шт.

8

87705478

SPROCKET ASSY.

Front Driven, 53T

1шт.

9

87705556

SPROCKET ASSY.,33T

Vertical Driven, 33T

1шт.

10

86588887

CLEVIS

Tensioner

1шт.

11

86582836

SPACER

Tensioner Sprocket

2шт.

12

34821

WASHER,17.86mm ID x 28.57mm OD x 1.52mm Thk

2шт.

13

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

1шт.

14

86519909

WASHER,17mm ID x 46mm OD x 5mm Thk

1шт.

15

86623083

SPACER

Rear Sprocket

1шт.

16

86000441

NUT,M16 x 2.0, Cl 8

1шт.

17

412126

NUT,M12 x 1.75

1шт.

18

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

19

337829

SPRING

Compression, Tensioner

1шт.

20

86601493

INDICATOR

Tensioner

1шт.

21

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

23

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

25

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

26

9515145

BUSHING,17mm ID x 30mm OD x 29mm L

1шт.

27

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

3шт.

28

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

3шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

31

170012

KEY,8mm W x 50mm OAL

4шт.

32

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

11шт.

33

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

34

86594534

SPROCKET

Drive

1шт.

35

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

36

310146

BEARING COVER

Housing

2шт.

37

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

38

9706755

NUT,M6, Cl 8

3шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

40

9819016

BUSHING,60mm ID x 65mm OD x 40mm L

Bearing

1шт.
