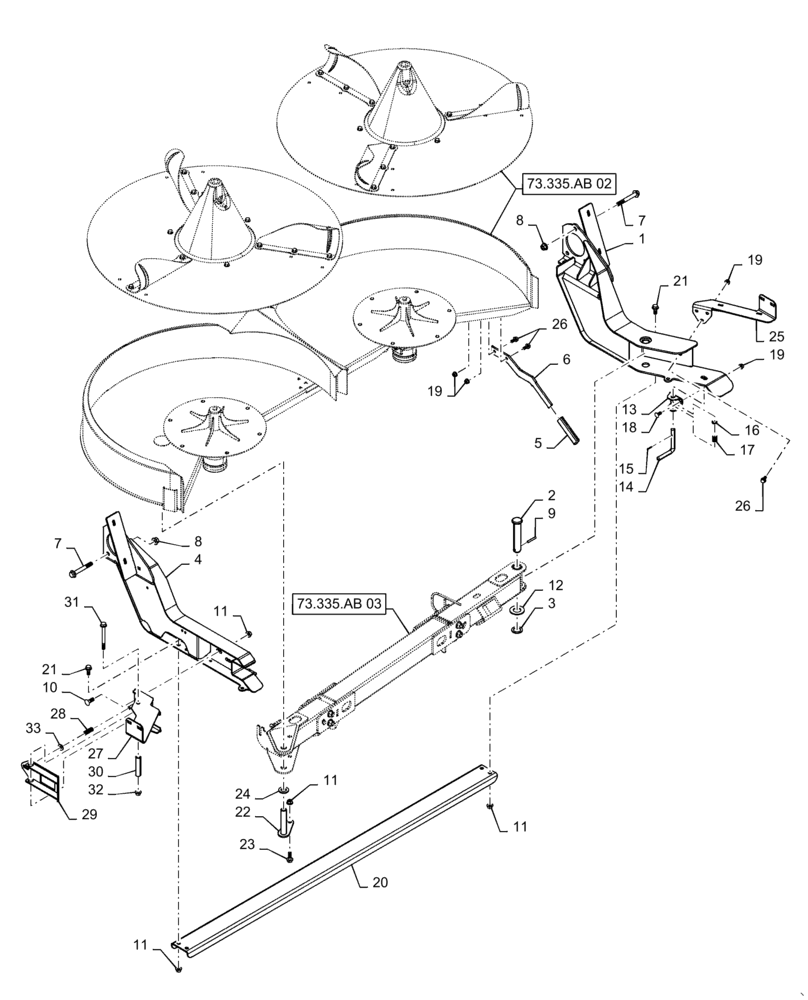

Запчасти Case IH 5140 (73.335.AB[01]) - VAR - 425459, 425460, 425533 - CHAFF SPREADER (73) - RESIDUE HANDLING

1

47723731

BRACKET

Spreader Support, RH

1шт.

2

47664678

PIN

Straight

1шт.

3

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

4

47722902

BRACKET

Spreader Support, LH

1шт.

5

433741A1

GRIP

Sieve Adjust

1шт.

6

47781659

HANDLE

Chaff Spreader

1шт.

7

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

6шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

9

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

10

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

3шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

12

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

13

47782590

BRACKET

Spreader Latch

1шт.

14

47782591

PIN

Ladder Support

1шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

17

540815R2

SPRING

Compression, Ratchet Hub Pawl

1шт.

18

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

20

47718672

BRACKET

Spreader Cross Brace

1шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

22

47459417

PIN

Spreader Pivot

1шт.

23

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

24

86625248

WASHER,0.78" ID x 1.38" OD x 0.13" Thk

1шт.

25

47716606

SUPPORT

Spreader Seal

1шт.

26

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

27

47673399

BRACKET

Spreader Lock

1шт.

28

192216A1

SPRING

Compression

1шт.

29

47716654

BRACKET

Spreader Latch

1шт.

30

47601114

BUSHING

Spreader Latch

1шт.

31

87695415

BOLT,Hex, M10 x 100mm, Cl 10.9

M10 x 100mm

1шт.

32

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

33

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

1шт.
