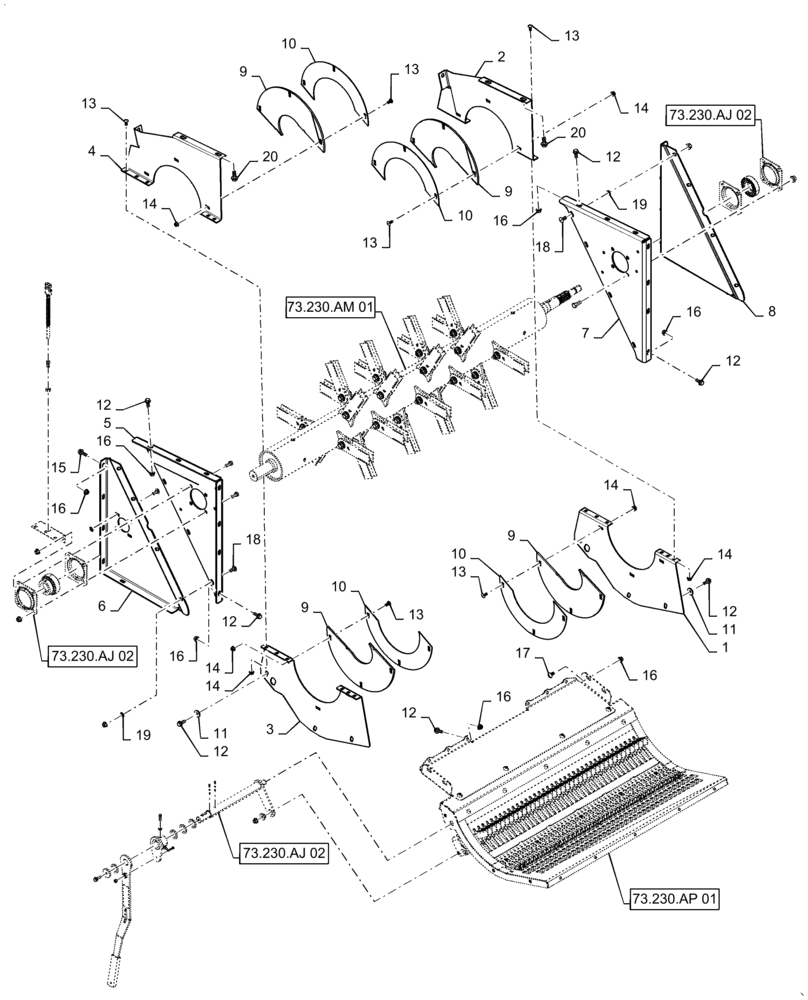

Запчасти Case IH 5140 (73.230.AJ[01]) - VAR - 425535 - STRAW CHOPPER, SUPPORT FRAME, FLAIL (73) - RESIDUE HANDLING

1

47874487

SUPPORT

Inner Bottom, RH

1шт.

2

47874485

SUPPORT

Inner Top, RH

1шт.

3

47874483

SUPPORT

Inner Bottom, LH

1шт.

4

47874480

SUPPORT

Inner Top, LH

1шт.

5

47770420

SUPPORT

Top, LH

1шт.

6

47883639

SUPPORT

Bottom, LH

1шт.

7

47770431

SUPPORT

Top, RH

1шт.

8

47883637

SUPPORT

Bottom, RH

1шт.

9

47874478

SEAL

Flail Chopper

4шт.

10

47874475

SHIELD

Seal Support

4шт.

11

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

6шт.

12

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

34шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

24шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

20шт.

15

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

44шт.

17

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

4шт.

18

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

8шт.

19

87698854

NUT,M10

8шт.

20

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.
