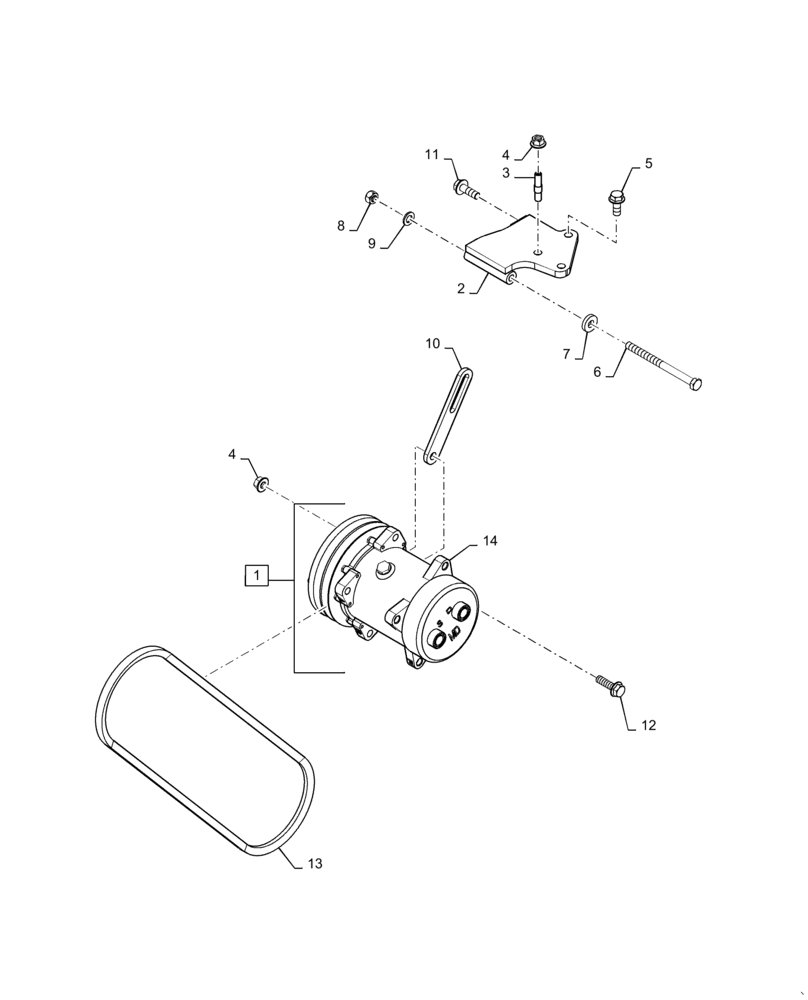

Запчасти Case IH 5140 (50.200.AA) - A/C COMPRESSOR, MOUNTING PARTS (50) - CAB CLIMATE CONTROL

1

86993462

AIRCOND. COMPRESSOR

Incl 14

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

2

84170869

BRACKET

Upper Mounting

1шт.

3

84196964

STUD

M10 x 45mm

2шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

9

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10mm

1шт.

10

84162196

BRACKET

Lower, Adjusting

1шт.

11

9840672

BOLT,Hex Serr Flg, M10 x 30mm

1шт.

12

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

13

87489502

V-BELT,12.7mm W

A/C Compressor Drive

1шт.

14

135324A2

CLUTCH

12V

1шт.
