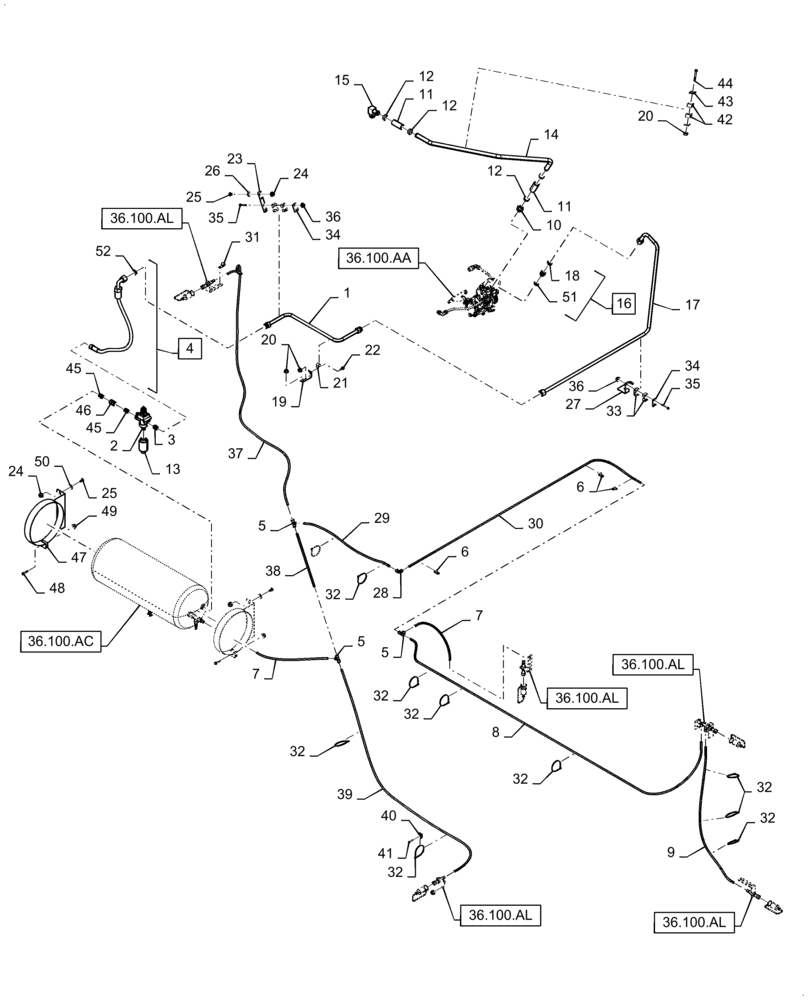

Запчасти Case IH 5140 (36.100.AK) - AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM

1

84342705

RIGID TUBE

Union to Hose

1шт.

2

466053

VALVE PRESSURE RELIE

Control

1шт.

3

87538605

HYD CONNECTOR

Straight

1шт.

4

47709873

HOSE

Tube to Reservior, Incl 53

1шт.

5

84175931

HYD CONNECTOR

Tee, Push Connect

3шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3шт.

7

84176521

HOSE

Midship Tee to Midship Quick Connect

2шт.

8

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee to Op Platform Quick Connect

1шт.

9

84172815

AIR HOSE,7.11mm ID x 1150mm OAL

Op Platform to Undercab Quick Connect

1шт.

10

84036669

FITTING

Nipple

1шт.

11

87637434

HYDRAULIC HOSE,1" ID x 3.1" L

2шт.

12

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

13

87590733

MUFFLER

Air Unload Valve

1шт.

14

47390996

TUBE

CCV Line

1шт.

15

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

16

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

Incl 51 - 52

1шт.

17

84342704

RIGID TUBE

Compressor to Union

1шт.

18

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

3шт.

19

87549264

SUPPORT TUBE,112.4 mm L

Center Bundle

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

21

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

23

84527246

BRACKET

Tube Support, Engine Rail

1шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

25

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

5шт.

26

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

27

84527251

BRACKET

Tube And Hose Support

1шт.

28

84372662

FITTING

Elbow Union

1шт.

29

84173550

AIR HOSE,7.1mm ID x 800mm OAL

Reservoir to Midship Tee

1шт.

30

84372644

AIR HOSE

Reservoir to Midship Tee

1шт.

31

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

32

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

33

86900723

CLAMP

Hydraulic Tube

2шт.

34

86900727

COVER

Plate

2шт.

35

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

4шт.

36

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

37

84176420

HOSE

Reservoir to Beacon Quick Connect

1шт.

38

47369196

HYDRAULIC HOSE

Reservoir to Midship Tee

1шт.

39

47660088

HOSE

Midship Tee to Quick Connect

1шт.

40

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

41

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

42

87000147

CLAMP

Hydraulic Tube

1шт.

43

87000230

PLATE

Cover

2шт.

44

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

45

9516263

FITTING

Nipple

2шт.

46

87751400

TUBE

Air Intake

1шт.

47

84149140

SUPPORT

Reservoir

2шт.

48

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

49

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

50

87698854

NUT,M10

4шт.

51

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

52

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
