Запчасти Case IH 5140 (36.100.AA) - PUMP, AIR COMPRESSOR (36) - PNEUMATIC SYSTEM

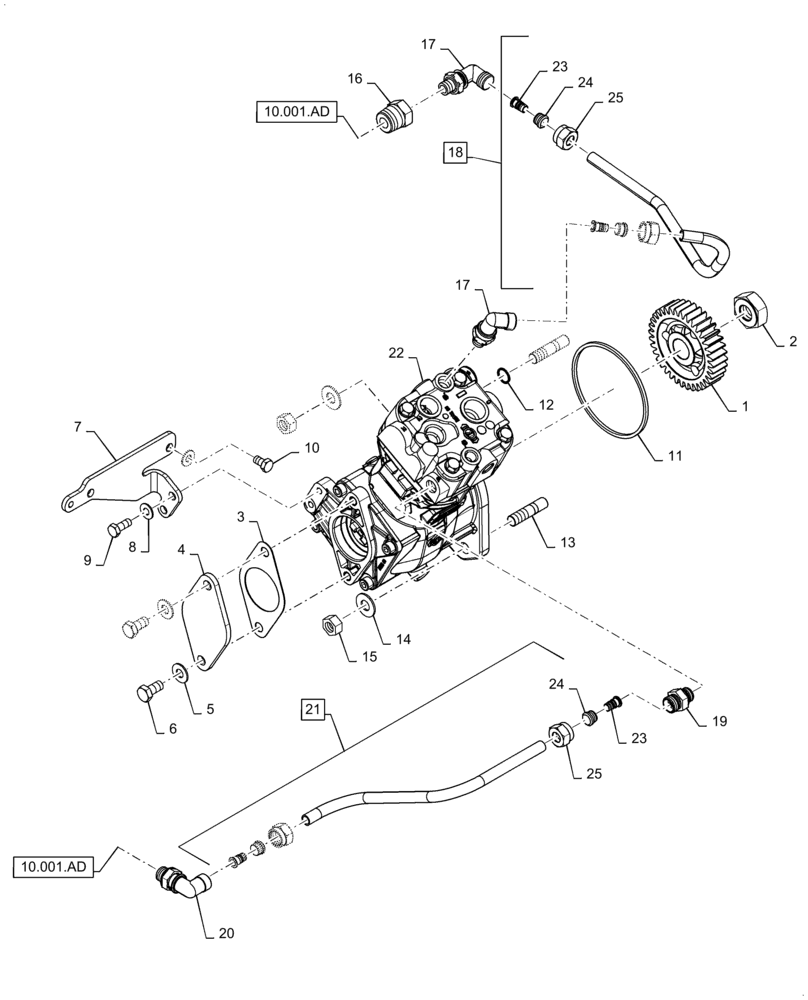

Схема запчастей Case IH 5140 - (36.100.AA) - PUMP, AIR COMPRESSOR (36) - PNEUMATIC SYSTEM
3
4
24
14
22
17
23
25
23
24
9
10.001.ad
6
10
10.001.ad
20
11
19
5
25
15
18
7
12
1
8
2
17
13
16
21

Артикул

Название

Примечание

Количество

1

47462925

GEAR

Air Compressor Drive

1шт.

2

87524831

NUT

Gear

1шт.

3

84441023

GASKET

Rear Cover

1шт.

4

87525174

COVER

Rear

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

7

87525336

SUPPORT

Mount

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

1шт.

11

87525489

SEALING RING

Pump Mount

1шт.

12

84441024

O-RING,9.19mm ID x 2.62mm Thk

1шт.

13

87525507

STUD

Mounting

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

87526110

PIPE FITTING

Air Hose

1шт.

17

87525736

ELBOW

Front Engine Tube

2шт.

18

84301067

TUBE

Front Engine, Incl 23 - 25

1шт.

19

87526205

PIPE FITTING

Side Engine Tube

1шт.

20

87525773

ELBOW

Side Engine Tube

1шт.

21

84301065

TUBE

Side Engine, Incl 23 - 25

1шт.

22

87524759

AIR COMPRESSOR

Pump

1шт.

23

87525650

Tube

BUSHING

4шт.

24

150015

FERRULE

Tube

4шт.

25

86548976

TUBE NUT,M18 x 1.5

4шт.

Выбрано товаров: 25
