Запчасти Case IH 5140 (27.450.AJ[02]) - AXLE EXTENSION, RH, 2-SPEED (27) - REAR AXLE SYSTEM

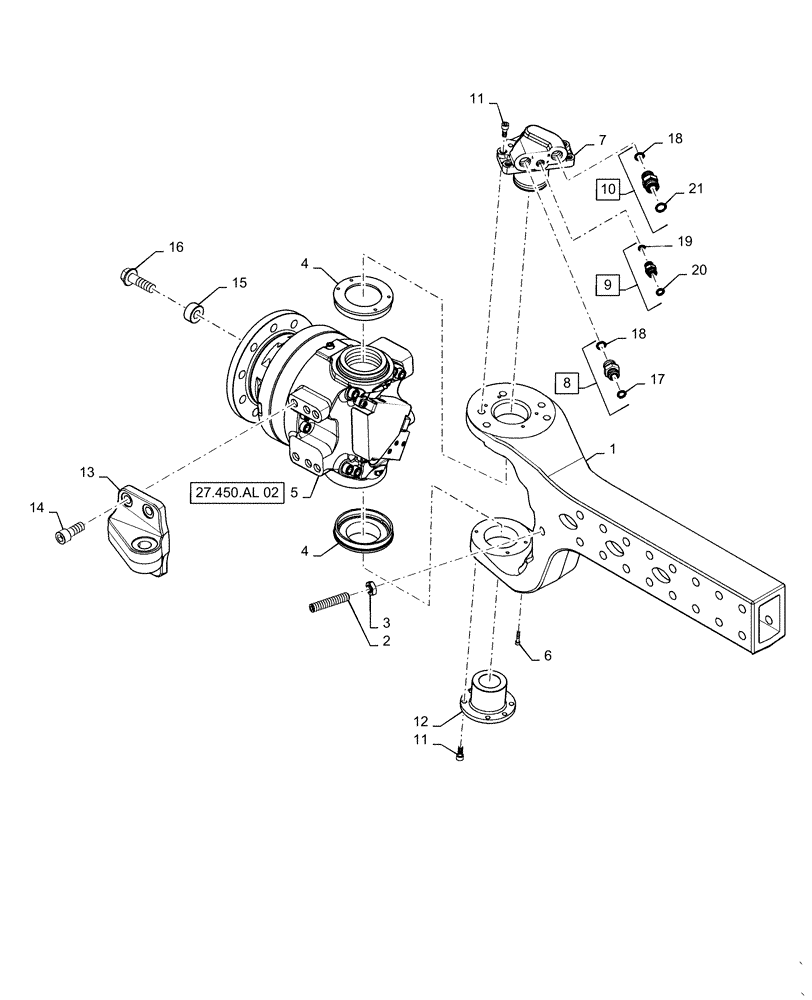

Схема запчастей Case IH 5140 - (27.450.AJ[02]) - AXLE EXTENSION, RH, 2-SPEED (27) - REAR AXLE SYSTEM
27.450.al 02
13
5
2
19
4
18
15
4
7
1
3
6
17
10
12
20
16
11
18
9
11
14
21
8

Артикул

Название

Примечание

Количество

1

87743252

EXTENSION

RH

1шт.

2

84326214

SET SCREW,Hex, M20 x 100mm

1шт.

3

829-4420

THIN NUT,M20 x 2.5, Cl 05

1шт.

4

84817924

DUST CAP,137.92mm OD x 22.1mm W

Seal, Kingpin

2шт.

5

84280362

HYDRAULIC MOTOR,1259CC

RH, 2 Speed

1шт.

6

9515561

HEX SOC SCREW,M6 x 35mm, Cl 12.9

8шт.

7

432698A1

GUIDE

Kingpin

1шт.

8

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

Incl 17, 18

1шт.

9

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 19, 20

1шт.

10

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 18, 21

1шт.

11

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

9шт.

12

84800194

PIN,3.15" OD x 3.07" L

Lower Pivot

1шт.

13

87685406

STEERING ARM

RH

1шт.

14

87733367

HEX SOC SCREW,M20 x 50mm, Cl 12.9, Full Thd

4шт.

15

87281709

SPACER,.81" ID x 1.75" OD x .79" L

Wheel Bolt

10шт.

16

87035472

FLANGE BOLT,Hex Flg, M20 x 1.5 x 70, Cl 10.9

10шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
