Запчасти Case IH 5130 (14.102.03) - POWER TAKEOFF INSTALLATION/DRIVE BELT (14) - MAIN GEARBOX & DRIVE

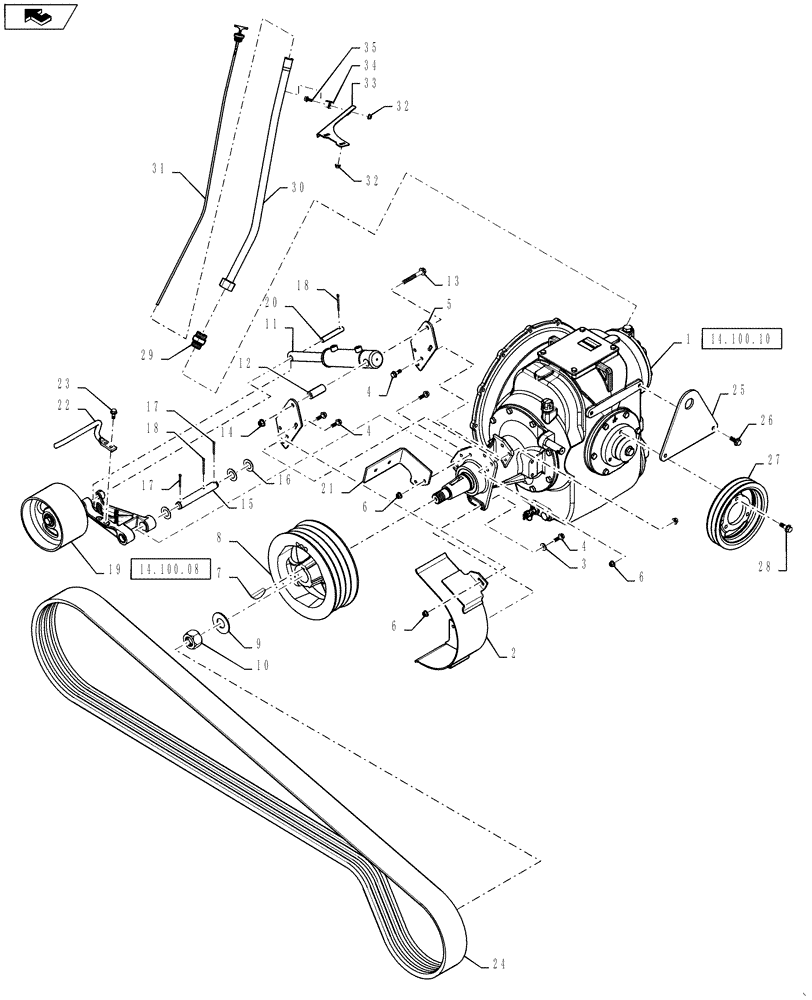

Схема запчастей Case IH 5130 - (14.102.03) - POWER TAKEOFF INSTALLATION/DRIVE BELT (14) - MAIN GEARBOX & DRIVE
23
17
33
30
26
6
6
10
4
14.100.10
20
12
7
21
35
32
22
5
3
31
6
25
13
29
14.100.08
32
home
19
15
28
9
11
18
4
16
2
27
17
24
8
1
4
34
18
14

Артикул

Название

Примечание

Количество

1

84359789

GEARBOX

PTO, See Page 14.100.10

1шт.

1

84359789R

REMAN-PTO GEARBOX A.

1шт.

1

84359789C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

84407375

COVER ASSY

1шт.

3

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

4

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

11шт.

5

84182878

SUPPORT

2шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

7

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

8

84406548

PULLEY,325.2mm OD

Separator Drive, 4HC

1шт.

9

84559733

WASHER,37mm ID x 78mm OD x 4mm Thk

1шт.

10

1148871

LOCK NUT,M36 x 4, Cl 5

1шт.

11

84340469

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 106.93mm Stroke

Separator Clutch

1шт.

11

134713A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

Includes 9992342, 219-87, 87025441 listed below

1шт.

11

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

1/2" ORFS-ORB 3/8

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

87025441

SEAL KIT

Seal Kit For Cylinder 84340469

1шт.

12

84181445

SPACER,12.7mm ID x 25.4mm OD x 63.5mm Thk

Separator Clutch Cylinder

1шт.

13

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

1шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

15

362678A1

PIN,25.38mm OD x 186mm L

Idler Arm Pivot Clutched Belt

1шт.

16

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

3шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

18

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

19

NSS

NOT SOLD SEPARAT

Arm Assy, Separator Idler W/ Pulley, See Page 14.100.08

1шт.

20

362679A1

PIN,15.88mm OD x 101.3mm L

1шт.

21

84243260

BRACKET

Belt Guide Channel

1шт.

22

84407378

GUIDE

1шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

24

84406044

BELT

4HC Belt, Separator Drive

1шт.

25

84250212

BRACKET

lift bracket

1шт.

26

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

27

84146055

PULLEY,250.5mm OD

Jackshaft Driver

1шт.

28

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

3шт.

29

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

30

84411113

TUBE

Tube, PTO

1шт.

31

84411114

DIPSTICK,1119.8mm L

Blade, PTO

1шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

33

84417668

SUPPORT

PTO Fill Tube

1шт.

34

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

35

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

Выбрано товаров: 41
