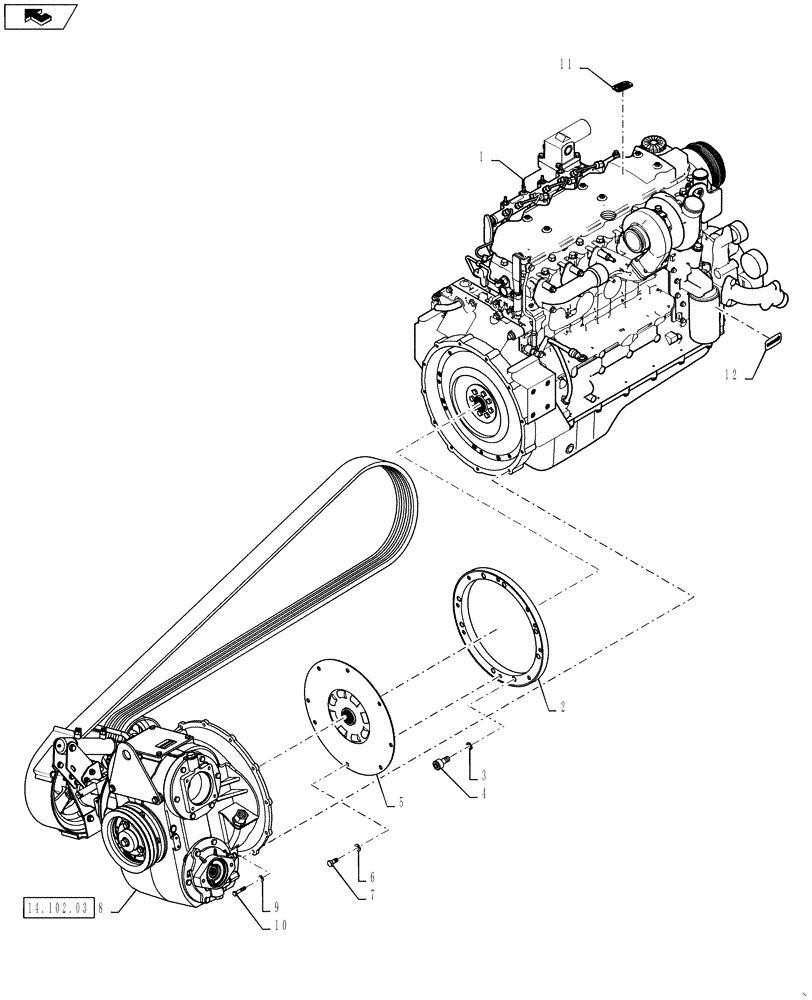

Запчасти Case IH 5130 (14.100.03) - PTO/ENGINE INSTALLATION 5130 T4 (14) - MAIN GEARBOX & DRIVE

1

84232924

ENGINE

5130 T4

1шт.

2

84461273

COUPLING RING

1шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

4

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

8шт.

5

87536815

SPLINED COUPLING,466.67mm OD

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

7

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

8шт.

8

84359789

GEARBOX

Does Not Include Pullies Or Lift Plate, See Page 14.102.03

1шт.

8

84359789R

REMAN-PTO GEARBOX A.

Does Not Include Pullies Or Lift Plate, See Page 14.102.03

1шт.

8

84359789C

CORE-PTO GEARBOX A.

Return Number

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

11

84373430

EMBLEM

Case IH

1шт.

12

87679098

DECAL,37mm x 70mm

Case IH

2шт.
