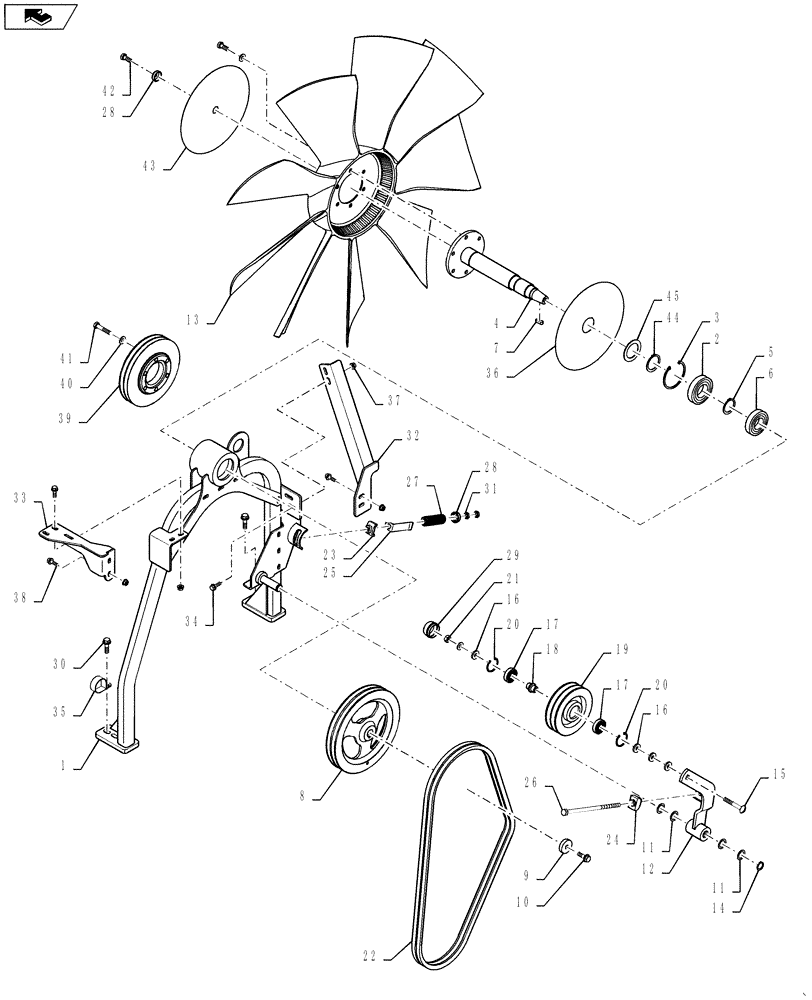

Запчасти Case IH 5130 (10.414.01) - ENGINE FAN DRIVE 5130 (10) - ENGINE

1

84148166

SUPPORT

Fan Drive

1шт.

2

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

300633

SNAP RING,M80, Internal

1шт.

4

84514654

SHAFT

1шт.

5

370006

SNAP RING,M40, Ext

1шт.

6

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

84557659

PULLEY,253.9mm OD

Engine Fan

1шт.

9

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

12

87540958

ARM ASSY.

1шт.

13

84457284

FAN

1шт.

14

370024

CIRCLIP,M20, Ext

1шт.

15

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

1шт.

16

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

17

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

18

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

19

87533880

PULLEY,144mm OD

1шт.

20

300644

SNAP RING,M40, Internal

2шт.

21

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

22

84150266

BELT

Set Of V Belts

1шт.

23

442398

GUIDE

1шт.

24

754131

GUIDE

1шт.

25

84188560

BRACKET

Fan Drive Spring

1шт.

26

9514334

ROD,M10 x 225mm

1шт.

27

84069932

COMPRESSION SPRING,25mm OD x 100mm L

1шт.

28

356728

CUP

2шт.

29

87540959

CAP

Dust

1шт.

30

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

31

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

32

84339616

BRACKET

1шт.

33

84299967

BRACKET

1шт.

34

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

35

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

36

84120743

DISC

1шт.

37

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

38

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

39

84471384

PULLEY

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

41

86637964

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

6шт.

42

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

43

84120744

DISC

1шт.

44

370007

SNAP RING,M45, Ext

1шт.

45

84120742

THRUST WASHER,45.3mm ID x 65mm OD x 2mm Thk

1шт.
