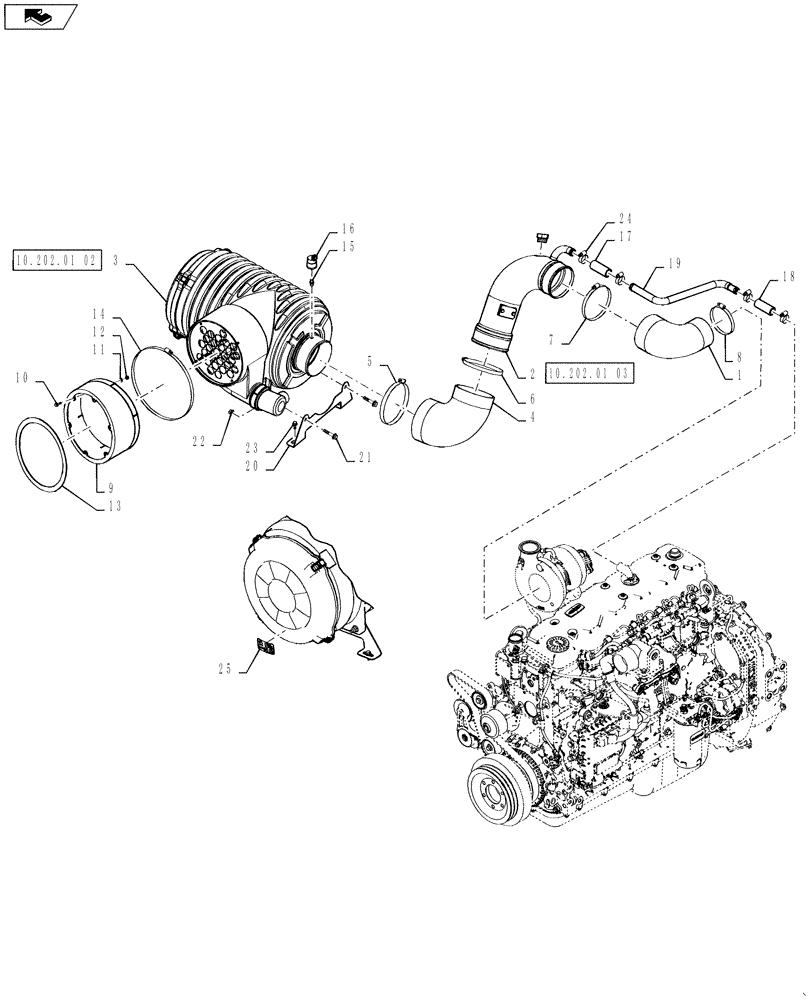

Запчасти Case IH 5130 (10.202.01[01]) - AIR CLEANER, AIR INDUCTION SYSTEM 5130 T2/T4 (10) - ENGINE

1

87313999

ELBOW

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

86998329

AIR CLEANER

1шт.

4

86995317

ELBOW

1шт.

5

86633350

HOSE CLAMP,159mm - 181mm

1шт.

6

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

7

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

8

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

9

451775A1

DUCT

1шт.

10

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

11

495-11028

WASHER,1/4", SAE

6шт.

12

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

6шт.

13

87302039

SEAL,856mm L

1шт.

14

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

15

86976679

ADAPTER

1шт.

16

87013666

SWITCH,Air Filter Restriction

1шт.

17

87637434

HYDRAULIC HOSE,1" ID x 3.1" L

1шт.

18

84296251

HOSE,22.23mm ID x 80mm L, SAE J30R7, Type 2

1шт.

19

84381095

TUBE

1шт.

20

84158622

BRACKET

2шт.

21

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

22

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

24

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

25

84215544

DECAL

1шт.
