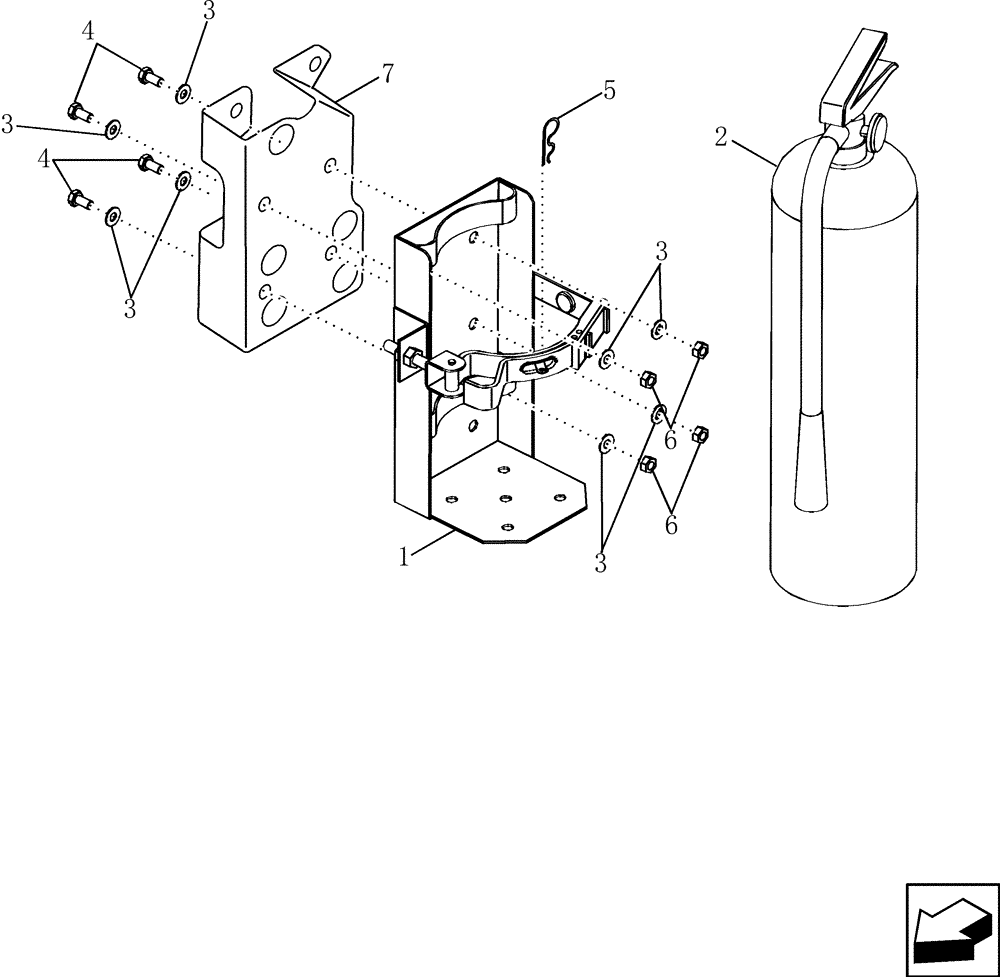

Запчасти Case IH 5130 (05.102.01) - FIRE EXTINGUISHER (NA & ANZ ONLY) (05) - SERVICE & MAINTENANCE

1

87414154

BRACKET

NA ONLY

2шт.

1

87561730

BRACKET

ANZ ONLY

2шт.

2

87414153

FIRE EXTINGUISHER

10 lb NA ONLY

2шт.

2

87425179

FIRE EXTINGUISHER

10 lb ANZ ONLY

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

5

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

8шт.

7

84213131

BRACKET

Ladder Fire Extinguisher Mount

1шт.

8

84130954

BRACKET

Saddle, For Rear Rail Attachement (Not Shown)

2шт.
