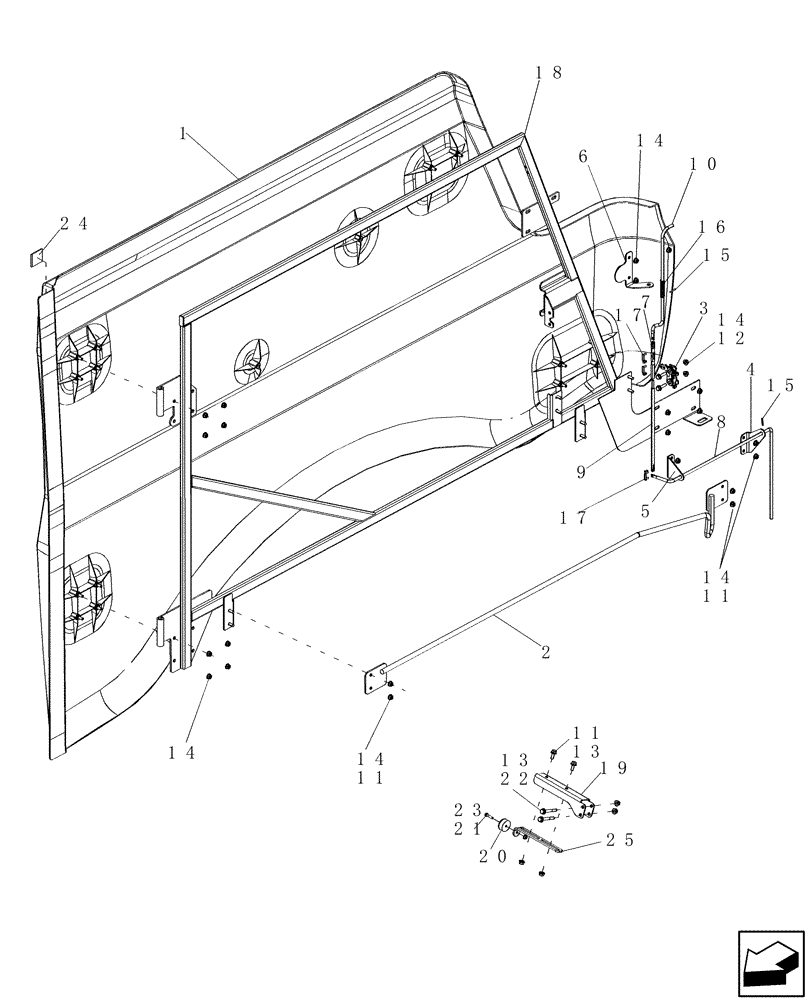

Запчасти Case IH 5130 (90.105.02[02]) - DOOR SHIELD - RIGHT HAND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87620367

PANEL

Rear, Right Hand

1шт.

2

87707244

GUIDE

Right Hand Rear Panel

1шт.

3

87695332

LATCH ASSY.

1шт.

4

87707025

BRACKET

Rear Panel Latch

1шт.

5

87706352

BRACKET

Rear Panel Latch

1шт.

6

84134668

BRACKET

Rear Panel Latch

1шт.

7

87282456

CLEVIS

Dual Latch

1шт.

8

87706351

ROD

Right Hand Rear Door Latch

1шт.

9

87706354

ROD

Right Hand Rear Door Upper Latch Linkage

1шт.

10

87755442

ROD

Door Latch, Right Hand, Rear

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

12

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

25шт.

15

438-1816

LOCK PIN,1/8" x 2" OAL, Slotted

3шт.

16

87426044

SPRING

1шт.

17

87282455

LOCK PIN

3шт.

18

84140983

BRACKET

Door, Right Hand, Rear

1шт.

19

87485146

BRACKET

Right Hand Rear Panel Bumper

1шт.

20

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Recessed With Washer Insert

1шт.

21

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

22

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

23

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

24

86984222

PAD

Adhesive Back

2шт.

25

87485148

BRACKET

Right Hand Rear Panel Bumper

1шт.
