Запчасти Case IH 5130 (88.210.15) - STRAWCHOPPER, 6 ROW FLAIL (88) - ACCESSORIES

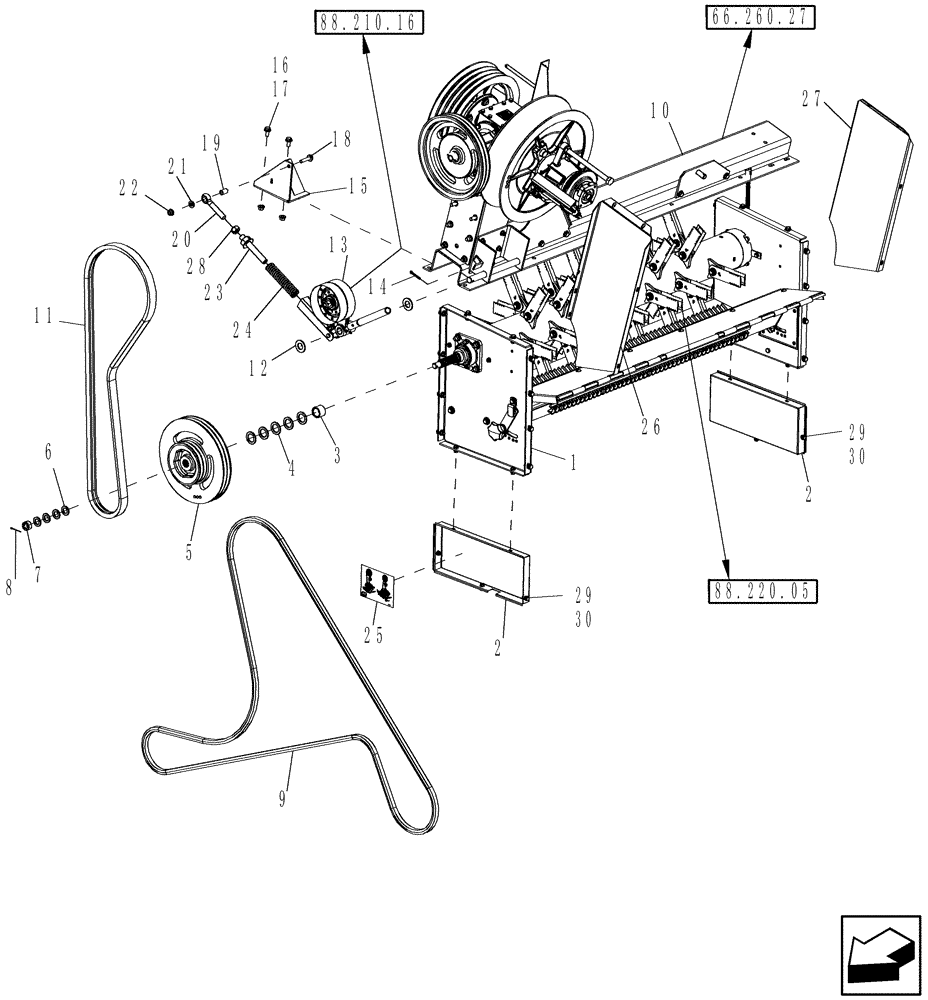

Схема запчастей Case IH 5130 - (88.210.15) - STRAWCHOPPER, 6 ROW FLAIL (88) - ACCESSORIES
30
29
23
2
5
3
29
19
28
16
17
30
2
14
4
21
6
16
10
15
66.260.27
88.220.05
13
24
27
17
20
26
30
8
22
7
29
12
9
25
29
88.210.16
1
11
30
18

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CHOPPER BODY, 6 Row Flail, See Page 88.220.05

1шт.

2

87757116

SUPPORT

Chopper Beater Filler

2шт.

3

87614520

SPACER

Chopper Driven Pulley

1шт.

4

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

5шт.

5

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

6

87629039

WASHER,0.91" ID x 1.5" OD x 0.12" Thk

4шт.

7

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

8

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

9

87476486

V-BELT,22.33 mm W x 5105.40 mm L

Cleaning System Drive With Chopper

1шт.

10

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY, Separator Jackshaft, Chopper, See Page 88.210.16

1шт.

11

87330903

V-BELT,16mm W x 2748mm L, 2 Ribs

Chopper Drive

1шт.

12

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

13

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY, Chopper Drive Idler

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

15

84389239

SUPPORT

Right Hand Chopper Drive Shield

1шт.

16

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

17

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

18

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

19

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

1шт.

20

1315259C1

BOLT,3/4" - 10 x 113mm

Tension Rod

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

22

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

23

87566525

PIN ASSY.

Tension Rod

1шт.

24

87564865

SPRING

Idler Tension Chopper Drive

1шт.

25

175788A1

DECAL

Straw Chopper Drive

1шт.

26

1347215C1

SUPPORT

Discharge, Right Hand

1шт.

27

1347214C1

SUPPORT

Discharge, Left Hand

1шт.

28

425-1012

NUT,3/4"-10, G5

1шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

Выбрано товаров: 30
