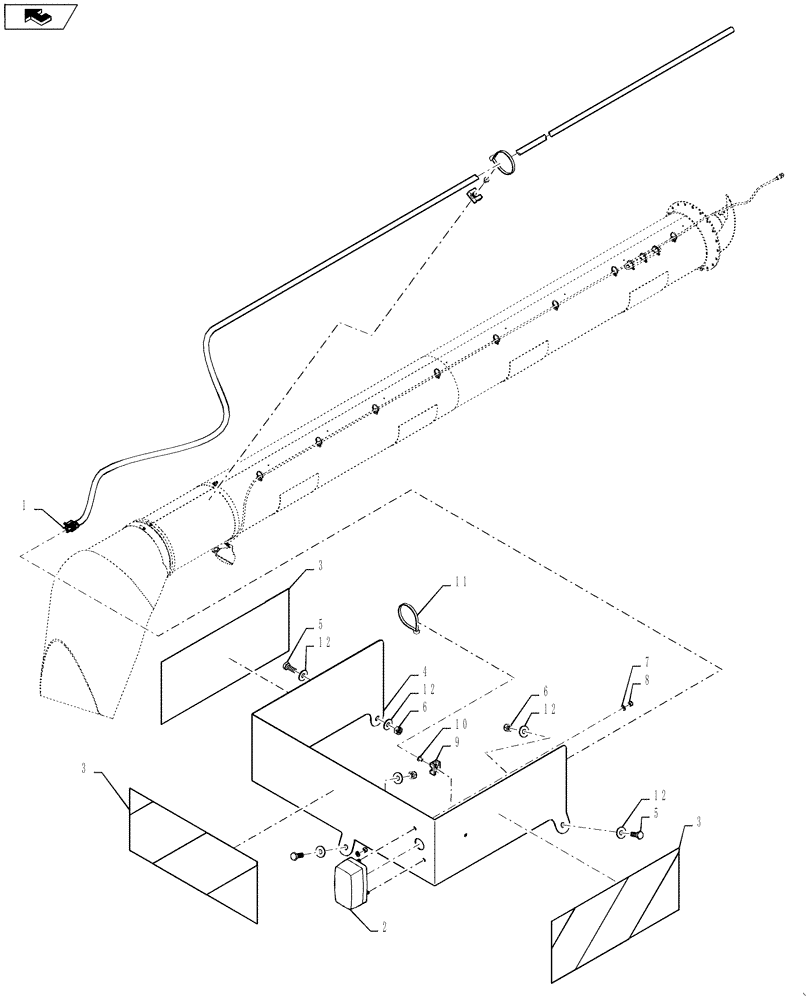

Запчасти Case IH 5130 (88.120.03) - LIGHT, UNLOADER TUBE SIGNAL PLATE, (EU ONLY) (88) - ACCESSORIES

1

87479791

WIRE HARNESS

1шт.

2

84429842

LAMP

1шт.

3

84441358

DECAL

3шт.

4

84221190

BRACKET, SUPPORTING

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

10

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

12

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.
