Запчасти Case IH 5130 (80.180.15) - AUGER ASSEMBLY, UNLOADER, 21 FEET (80) - CROP STORAGE/UNLOADING

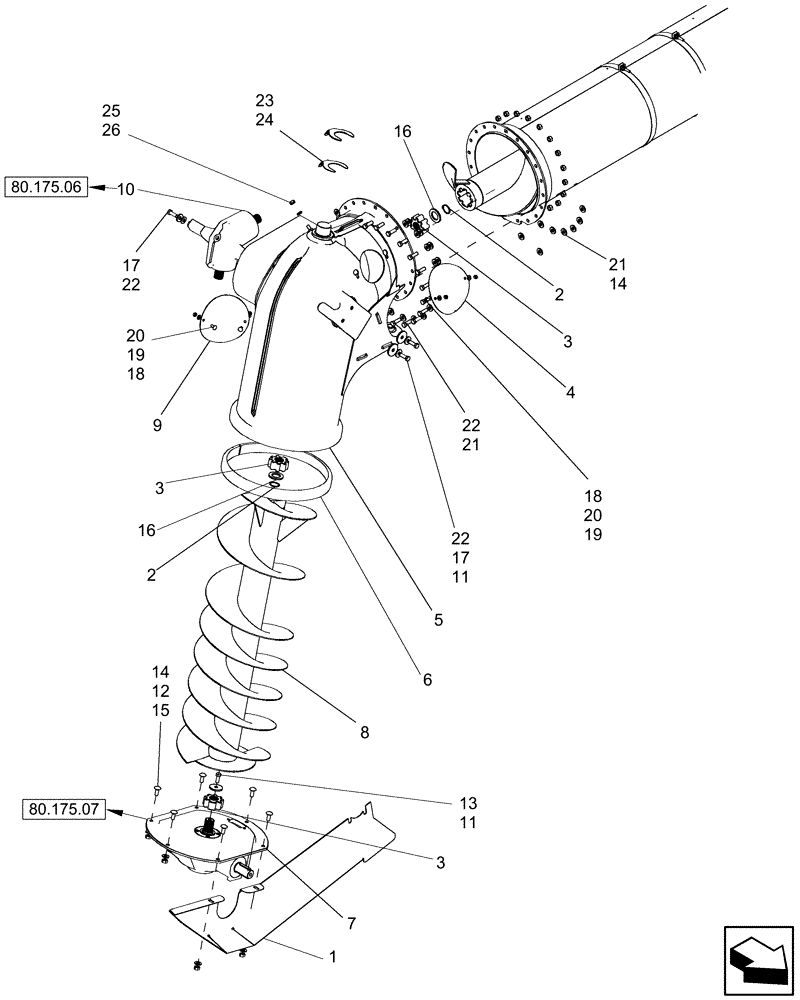

Схема запчастей Case IH 5130 - (80.180.15) - AUGER ASSEMBLY, UNLOADER, 21 FEET (80) - CROP STORAGE/UNLOADING
19
13
2
22
6
16
12
17
17
2
1
11
10
22
16
19
80.175.07
80.175.06
20
3
26
24
3
18
14
9
8
14
18
21
20
15
23
3
11
5
21
22
4
7
25

Артикул

Название

Примечание

Количество

1

87476437

GUARD

Unloader Chain Drive

1шт.

2

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

3

87011705

HUB,21T

3шт.

4

87552534

COVER

1шт.

5

84126361

ELBOW,Unloading Auger

Unloading Auger

1шт.

6

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

7

84320052

GEARBOX

Lower Unloader

1шт.

84320052R

REMAN-GEARBOX

5130, 6130, 7130 All TIER 4 (1/12-)

1шт.

84320052C

CORE-GEARBOX

Return Number

1шт.

8

84447940

AUGER

Standard And Perforated Unloader

1шт.

8

87756536

AUGER

Extended Wear, RFC Unloader

1шт.

9

87552532

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

GEARBOX, Upper Unloader

1шт.

11

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

25шт.

15

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

16

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

17

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

18

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

9706690

NUT,M8 x 1.25, Cl 8

4шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

21

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

22

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

22шт.

23

87627724

SHIM,1.7mm Thk

1шт.

24

87620925

SHIM,3.2mm Thk

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

1шт.

Выбрано товаров: 29
