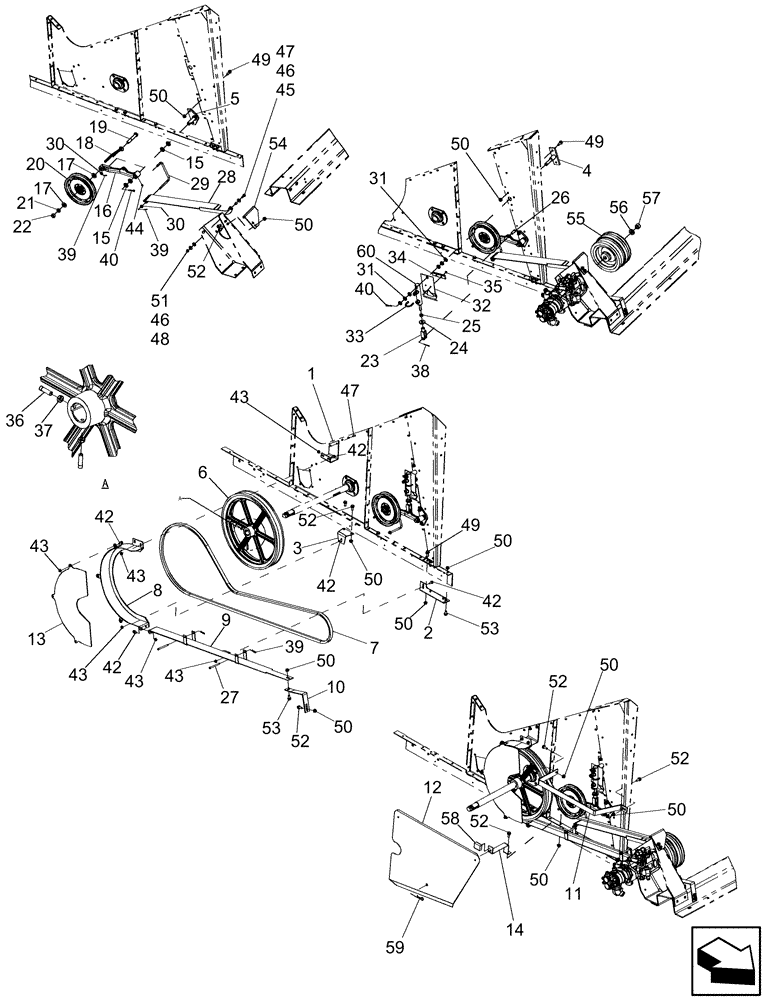

Запчасти Case IH 5130 (80.175.03[01]) - UNLOADER, BELT DRIVE, 2.5 BU/SEC- 5130 (80) - CROP STORAGE/UNLOADING

1

87682668

SUPPORT

Unloader Belt Guide, Top

1шт.

2

87682672

SUPPORT

Unloader Belt Guide, Center

1шт.

3

87682670

SUPPORT

Unloader Belt Guide, Bottom

1шт.

4

87555297

ASSEMBLY

Shaft, Unloader Idler Cylinder

1шт.

5

87555294

SHAFT ASSY.

Unloader Drive Idler Arm

1шт.

6

87470148

PULLEY

Unloader Driven 5130

1шт.

87555276

PULLEY

Unloder Driven 61/7130

1шт.

7

87566055

V-BELT,22.33 mm W x 3864.00 mm L

Unloader Drive 5130

1шт.

87549557

V-BELT,22.33 mm W x 3868.00 mm L

Unloader drive 61/7130

1шт.

8

87682676

GUIDE

Unloader Belt, Front

1шт.

9

87682680

GUIDE

Unloader Belt, Rear

1шт.

10

87395751

SUPPORT

Unloader Belt Guide, Rear

1шт.

11

87684242

STRAP

Unloader Drive Shield

1шт.

12

87684244

BRACKET, SUPPORTING

Unloader Drive Belt

1шт.

13

87684246

COVER ASSY

Unloader Drive Belt

1шт.

14

87555282

SUPPORT ASSY.

Unloader Shield

1шт.

15

495-81039

WASHER,25/32" x 1 1/4" x .120"

4шт.

16

112008A1

ARM

Unloader Auger

1шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

18

194894C1

ROD

Unloader Belt Upper

1шт.

19

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

20

177195C1

PULLEY ASSY.

Idler 5130

1шт.

87547334

PULLEY

Idler 61/7130

1шт.

21

492-11062

BEARING WASHER,5/8"

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

24

189153A1

WASHER

Unloader Clutch Retainer

1шт.

25

425-118

NUT,1/2"-20, G5

1шт.

26

427-8136

CLEVIS PIN,1/2" x 1.360"

1шт.

27

439-1556

PIN,5/16" x 3 1/2"

2шт.

28

87555302

SUPPORT ASSY.

Unloader Drive Belt

1шт.

29

87555310

ROD

Unloader Drive Belt Upper Retainer

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

31

495-81175

WASHER,21/32" x 1" x .120"

6шт.

32

84172259

RETAINER

Unloader Clutch

1шт.

33

84226332

CLAMP

1шт.

34

NSS

NOT SOLD SEPARAT

Not Used

1шт.

35

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

36

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

37

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

38

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

40

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

42

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

43

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

45

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

46

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

47

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

48

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

49

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

50

86050279

FLANGE NUT,M10 x 1.5, Cl 10

17шт.

51

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

1шт.

52

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

9шт.

53

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

54

87555312

RETAINER

Unloader Drive Belt

1шт.

55

87565840

PULLEY

Auxiliary Pump Drive

1шт.

56

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

1шт.

57

231-46112

LOCK NUT,3/4"-16, GB

1шт.

58

187884C1

SEALING STRIP,50mm L

Foam Strip

1шт.

59

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

60

84226332

CLAMP

1шт.

60

87337243

CYLINDER,Double Acting, 12.7mm Rod, 69.85mm Stroke

Unloader Clutch 5130

1шт.

87546281

CYLINDER,Double Acting, 12.7mm Rod, 69.85mm Stroke

Unloader Clutch 61/7130

1шт.

60

327679A1

CHECK VALVE

Optional, To Slow Engagement Of 87337243

1шт.
