Запчасти Case IH 5130 (80.154.01[01]) - GRAIN TANK EXTENSIONS, 250 BUSHEL - 5130 (80) - CROP STORAGE/UNLOADING

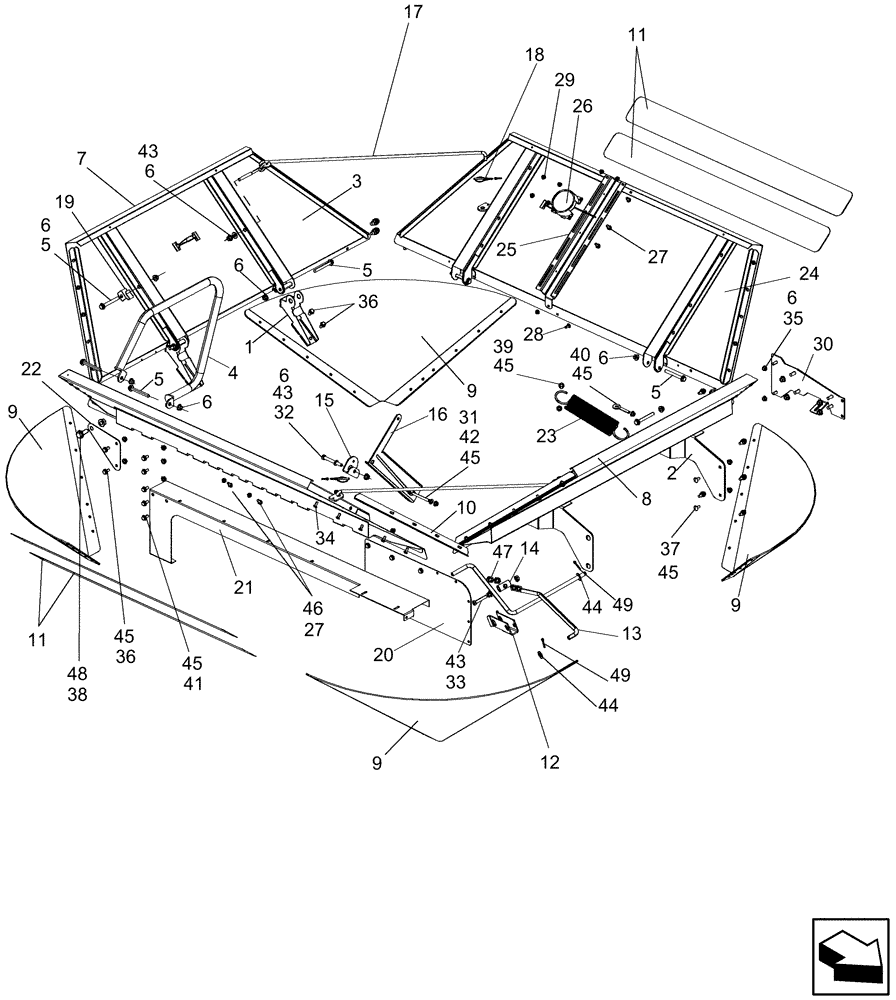

Схема запчастей Case IH 5130 - (80.154.01[01]) - GRAIN TANK EXTENSIONS, 250 BUSHEL - 5130 (80) - CROP STORAGE/UNLOADING
27
35
5
44
33
26
45
11
30
17
9
14
34
22
46
27
8
6
10
5
45
41
16
24
49
29
37
45
5
6
21
45
25
9
18
11
39
19
3
36
28
23
31
13
47
42
9
48
6
45
6
12
49
1
20
32
15
45
5
38
9
7
43
4
43
40
6
44
6
2
36
43
6

Артикул

Название

Примечание

Количество

1

87606500

HINGE

Left Hand

2шт.

2

87474228

HINGE

Right Hand

2шт.

3

87554394

EXTENSION ASSY.

Rear, 24 Inch

1шт.

4

87109875

HANDLE

Grab

1шт.

5

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

12шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

28шт.

7

84368551

EXTENSION

Left Hand, 24 Inch

1шт.

8

84368545

EXTENSION

Right Hand, 24 Inch

1шт.

9

87734459

CANVAS

Extension Corner, 24 Inch

4шт.

10

84194670

ANGLE

8шт.

11

86995792

PAD,125mm W x 1270mm L

Anti Skid Strips

4шт.

12

87571909

ASSEMBLY

Handle Latch, Bubbler

1шт.

13

87656571

ROD

Latch, Bubbler Auger

1шт.

14

87571967

BUSHING

Latch, Bubbler Auger

1шт.

15

87107781

BRACKET

1шт.

16

87608564

BRACKET

Extension Panel

1шт.

17

87553944

ROD

Prop, Grain Tank Extension

2шт.

18

87106279

PIN,6.4mm OD

2шт.

19

86976901

CLIP

Prop Rod

2шт.

20

87603123

SUPPORT

Tank Support

1шт.

21

84300516

BRACKET

No Actuator

1шт.

22

87614100

COVER

Tank Extension, Left Hand Rear

1шт.

23

86975571

SPRING,Extension, 72.4mm OD x 356mm L

1шт.

24

87554394

EXTENSION ASSY.

Front, 24 Inch

1шт.

25

87756703

BRACKET

Bin Level Sensor, 24 Inch

1шт.

26

87701176

SENSOR

Grain Bin

1шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

28

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

29

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

30

84555626

PLATE

Tank Support, Right Hand Front

1шт.

31

120117

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8, Full Thd

1шт.

32

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

1шт.

33

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

34

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

40шт.

35

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

11шт.

36

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

8шт.

37

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

38

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

1шт.

39

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

1шт.

40

86599359

EYEBOLT

1шт.

41

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

10шт.

42

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

43

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

44

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

45

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

46

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

47

100020

NUT,M16 x 2.0, Cl 8

4шт.

48

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

49

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

2шт.

Выбрано товаров: 49
