Запчасти Case IH 5130 (80.101.41[01]) - FRAME, CLEAN GRAIN ELEVATOR WITH HEAD, STANDARD (80) - CROP STORAGE/UNLOADING

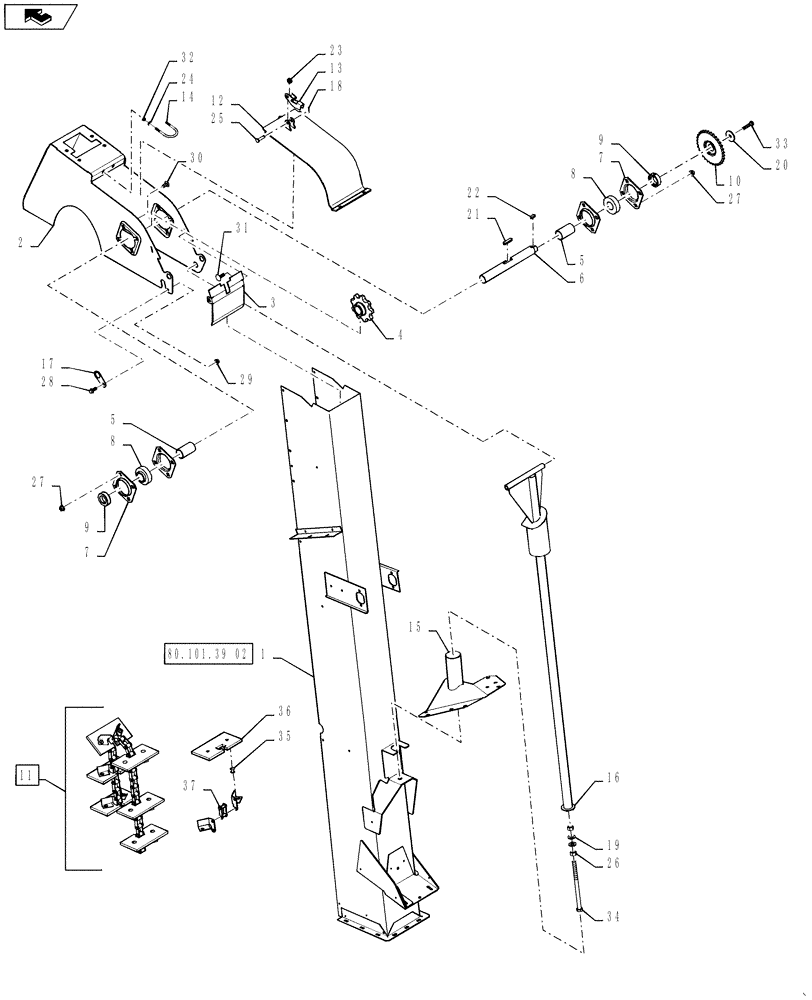

Схема запчастей Case IH 5130 - (80.101.41[01]) - FRAME, CLEAN GRAIN ELEVATOR WITH HEAD, STANDARD (80) - CROP STORAGE/UNLOADING
28
18
24
5
17
36
22
33
16
31
25
6
21
8
7
27
12
5
34
13
2
32
7
80.101.39 02
15
3
home
14
30
4
20
29
1
27
37
23
9
9
35
26
11
8
19
10

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1шт.

2

84258176

FRAME

1шт.

3

84202836

DIVIDER

Additional shims needed when installing this part before s/n YAG003407. 1x 87613303 and 1x 87613304 on each side (2x each per head divider)

1шт.

4

87324981

SPROCKET,9T

1шт.

5

87337958

SPACER,38.35mm ID x 44.45mm OD x 76mm L

2шт.

6

87384187

SHAFT

1шт.

7

1307583C1

FLANGED BEARING

4шт.

8

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

2шт.

9

87313329

COLLAR

2шт.

10

84163939

SPROCKET ASSY.,27 Teeth

1шт.

11

87365387

CONVEYOR ASSY.,CA550, 154 Links x 41.4mm = 6375.6mm

1шт.

12

87727685

DOOR ASSY.

1шт.

13

86581559

HANDLE

1шт.

14

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

15

84130477

TRAP DOOR

1шт.

16

84129021

ASSEMBLY

1шт.

17

84134664

BRACKET

1шт.

18

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

19

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

20

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1шт.

21

170056

KEY,12mm W x 50mm OAL

1шт.

22

368317

KEY,10mm x 8mm x 25mm

1шт.

23

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

25

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

26

100020

NUT,M16 x 2.0, Cl 8

2шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

29

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

30

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

6шт.

31

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

32

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

33

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

34

389034

BOLT,Hex, M16 x 2 x 251mm, Cl 8.8, Full Thd

1шт.

35

185053C1

RIVET

76шт.

36

1318493C2

RUBBER FLIGHT

38шт.

37

87362143

CHAIN (AG),CA550, 154 Links x 41.4mm = 6375.6mm

1шт.

Выбрано товаров: 37
