Запчасти Case IH 5130 (60.120.14) - HEADER DRIVE, ROCK TRAP, TWO SPEED (60) - PRODUCT FEEDING

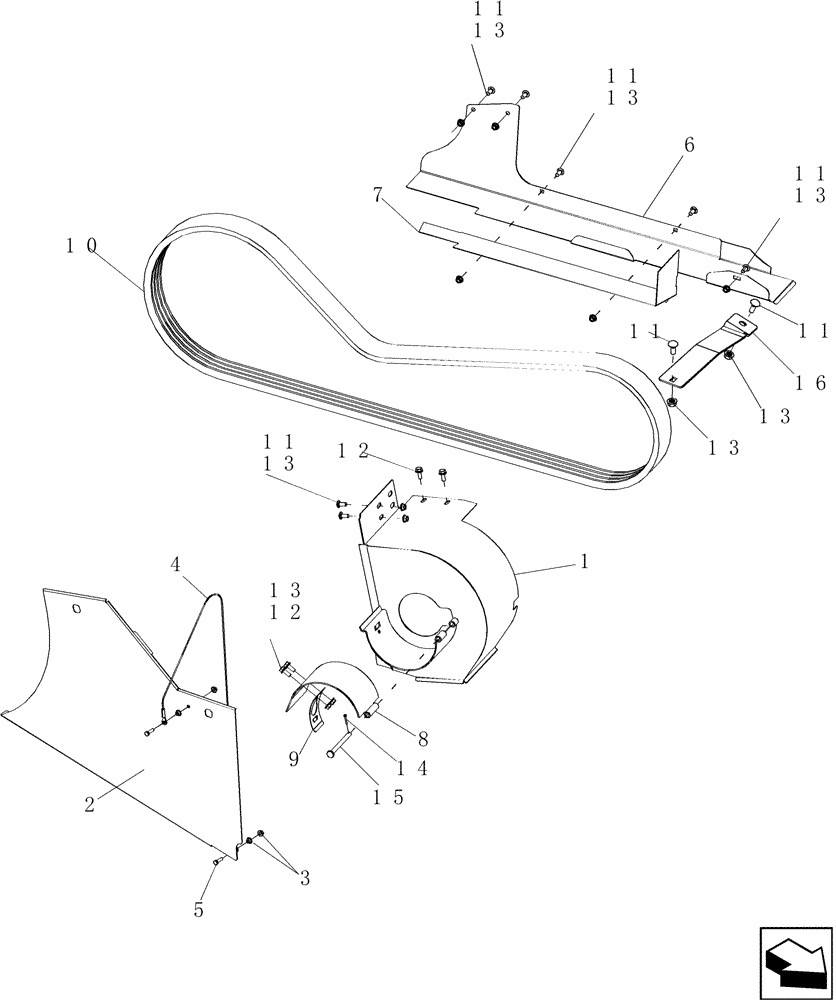

Схема запчастей Case IH 5130 - (60.120.14) - HEADER DRIVE, ROCK TRAP, TWO SPEED (60) - PRODUCT FEEDING
11
11
3
8
13
13
5
2
6
13
13
1
15
13
16
12
11
10
4
11
9
14
12
13
11
7
13
11

Артикул

Название

Примечание

Количество

1

87720873

SHIELD

Jackshaft, Rock Trap, Two Speed

1шт.

2

87754565

COVER ASSY

Feeder Drive, 54 Inch

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

4

132657A2

CABLE

Reverser Shield Tether

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

6

84154692

COVER ASSY

Feeder Drive, 54 Inch

1шт.

7

87720877

COVER ASSY

Belt, 54 Inch, Two Speed

1шт.

8

87338195

SHIELD

Jackshaft, Right Hand Upper

1шт.

9

86638316

LATCH

1шт.

10

87332159

BELT,13.24 mm W

Header Drive, Rock Trap

1шт.

11

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

9шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

14

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

15

86605625

CLEVIS PIN,M10 x 110

1шт.

16

84154100

BRACKET

Header Drive, 54 Inch

1шт.

Выбрано товаров: 16
