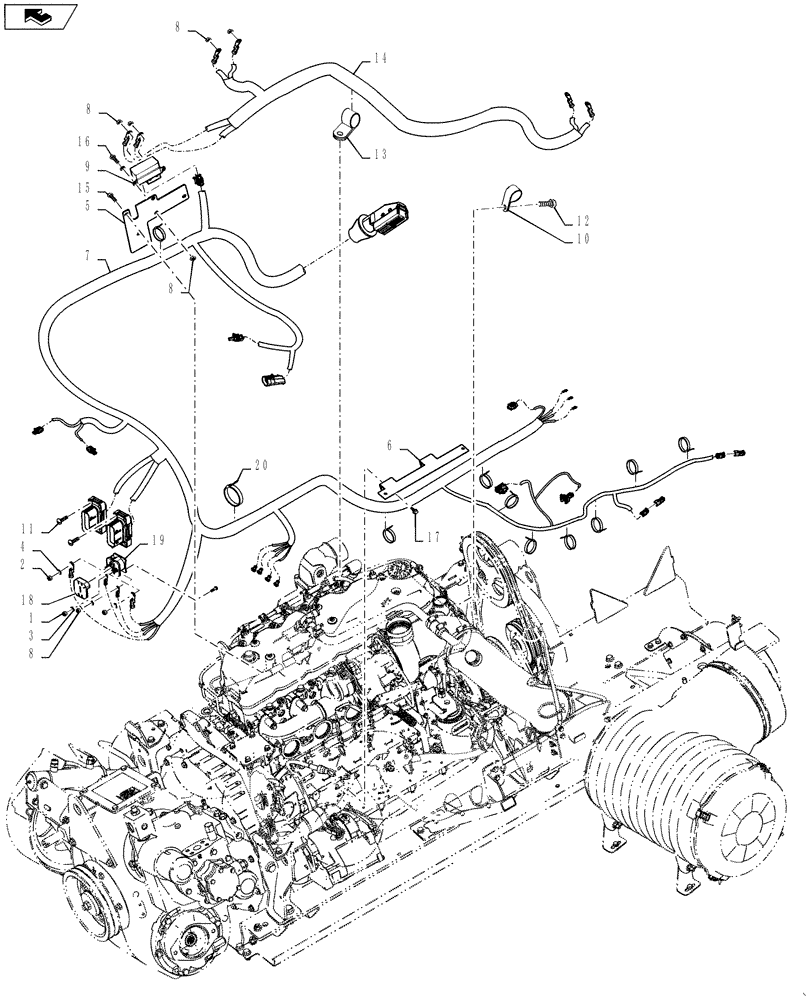

Запчасти Case IH 5130 (55.440.04) - HARNESS, ENGINE CONTROL, 5130 (55) - ELECTRICAL SYSTEMS

1

225-14210

NUT,#10-32

1шт.

2

425-105

NUT,5/16"-18, G5

2шт.

3

492-11010

LOCK WASHER,#10

1шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

84312225

SUPPORT

Relay

1шт.

6

84522940

BRACKET

Harness Support

1шт.

7

84566824

WIRE HARNESS

Engine harness, NEF 5130

1шт.

8

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

9

86619908

RELAY,12V, 150A

Grid Heater

1шт.

10

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

4шт.

12

87021006

BOLT,M10 x 26.4mm, Cl 10.9

1шт.

13

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

14

87391332

WIRE HARNESS

Cable To Grid Heater, NEF

1шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

16

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

17

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

2шт.

18

178148A1

COVER

Starter Relay

1шт.

19

183038A1

SOLENOID

Starter Relay W/ Barrier

1шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP Cable Lock

1шт.
