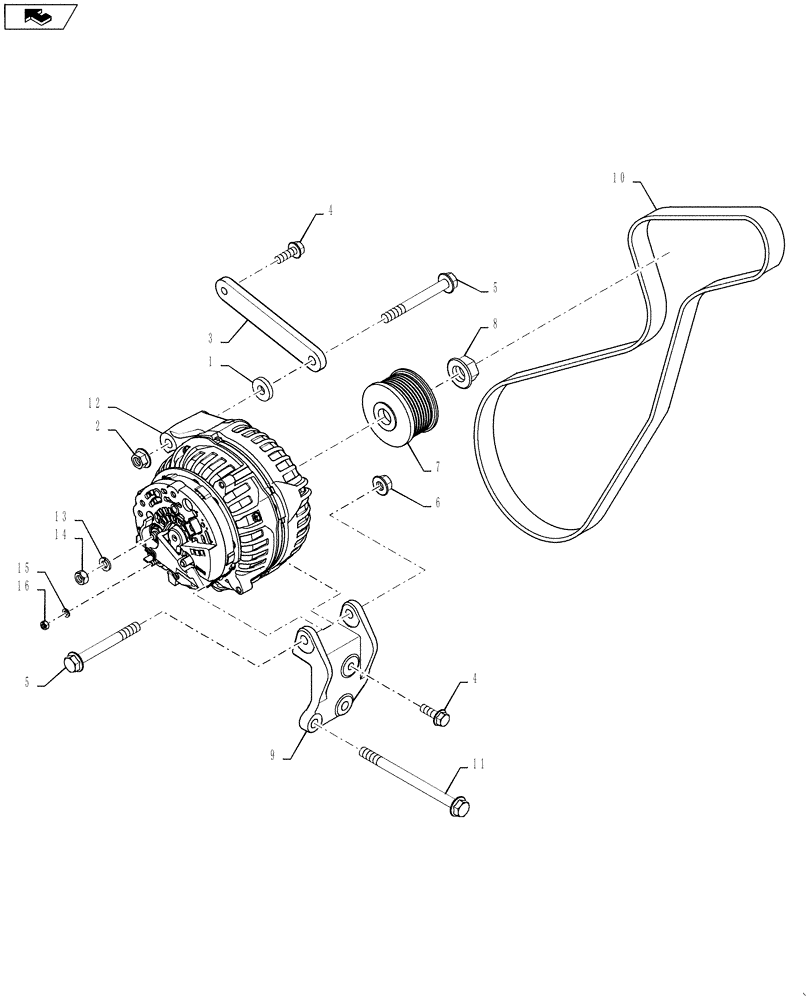

Запчасти Case IH 5130 (55.301.10) - ALTERNATOR AND MOUNTING, 5130 NEF T2/T4 (55) - ELECTRICAL SYSTEMS

1

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

2шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

3

84530585

BRACKET

Alternator Mount

1шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

5

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

2шт.

6

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

7

84174273

PULLEY

Alternator

1шт.

8

86512498

FLANGE NUT,M16 x 2, Cl 10

Alternator

1шт.

9

84305176

MOUNT

Alternator Lower

1шт.

10

84312027

BELT,1276mm L

Alternator

1шт.

11

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

2шт.

12

84474354

ALTERNATOR,12V, 200A

Does Not Include Pulley Or Nut

1шт.

12

84474354R

REMAN-ALTERNATOR,12V, 200A

5130 TIER 4

1шт.

12

84474354C

CORE-ALTERNATOR

Return Number

1шт.

13

892-11008

LOCK WASHER,8mm ID

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

892-11005

LOCK WASHER,M5

1шт.

16

824-1405

NUT,M5, Cl 5

1шт.
