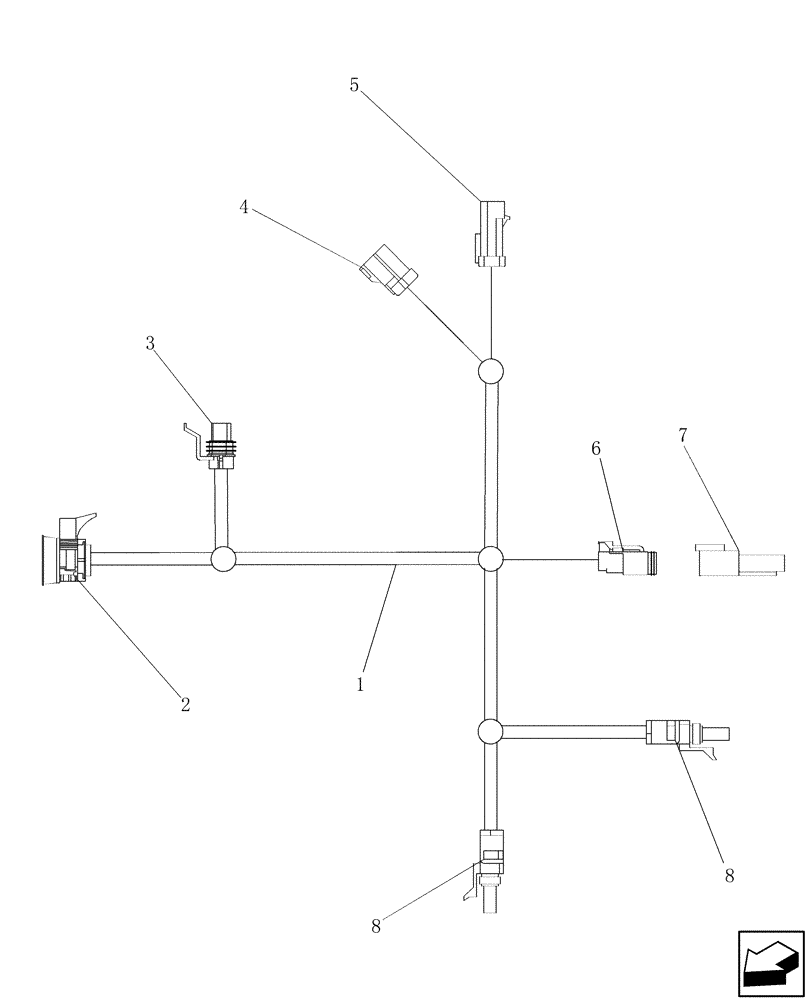

Запчасти Case IH 5130 (55.100.60[01]) - HARNESS, CHASSIS, LEFT HAND FRONT (55) - ELECTRICAL SYSTEMS

1

87742265

WIRE HARNESS

Left Hand Front, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR, 34-Pin, C002 To Cab

1шт.

3

198456A1

ELEC CONNECTOR,Female

3-Pin, C201 Header Lift Pressure

1шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR, 14-Pin, C204 To Feeder Harness

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR, 14-Pin, C205 To Feeder Harness

1шт.

6

NSS

NOT SOLD SEPARAT

CONNECTOR, 2-Pin, C211

1шт.

7

225315C1

ELEC CONNECTOR,Male, 2 Pin

Install For Dust Cap

1шт.

8

245482C1

ELEC CONNECTOR,2 Pin

2-Pin, C214 Feeder Speed Sensor, C203 Rotor Speed

2шт.
