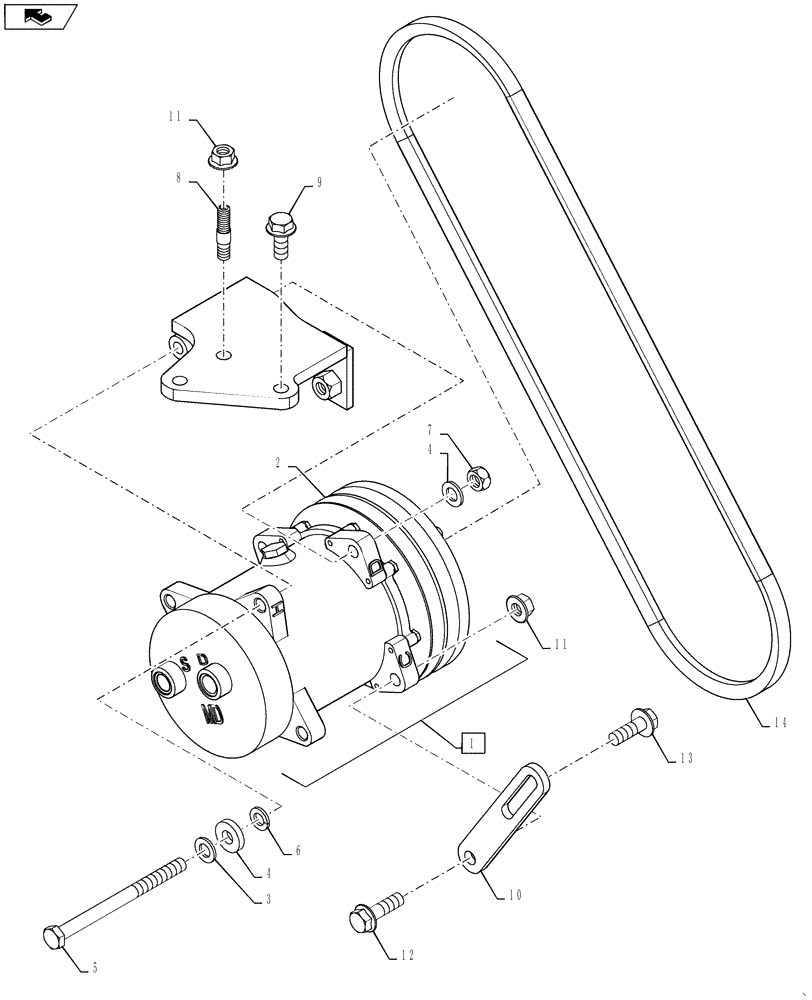

Запчасти Case IH 5130 (50.200.11) - AIR CONDITIONING- COMPRESSOR MOUNTING AND DRIVE 5130 NEF T2/T4 (50) - CAB CLIMATE CONTROL

1

86993462

AIRCOND. COMPRESSOR

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

5130 TIER 4 (1/12-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2

135324A2

CLUTCH

1шт.

3

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

4

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

5

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

84196964

STUD

2шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

10

84162196

BRACKET

1шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

12

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

13

9840672

BOLT,Hex Serr Flg, M10 x 30mm

1шт.

14

87489502

V-BELT,12.7mm W

For A/C Compressor

1шт.

15

84170869

BRACKET

1шт.
