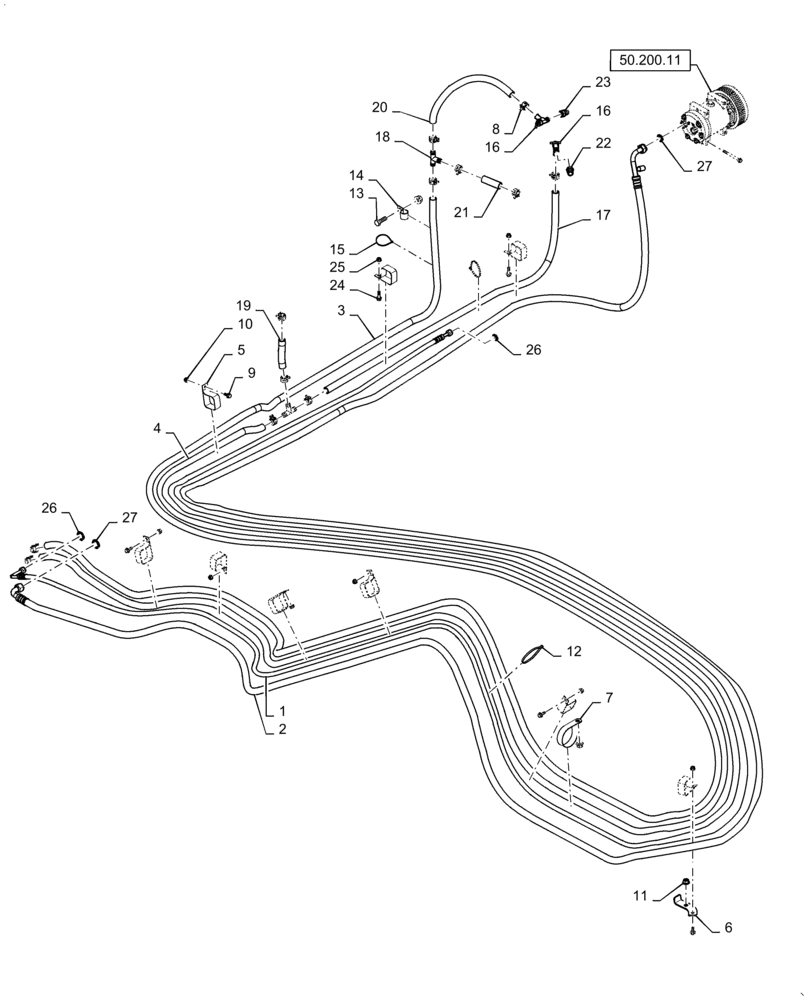

Запчасти Case IH 5130 (50.200.05) - HEATER-AIR CONDITIONING - COMPRESSOR TO CONDENSOR AND CAB/CHASSIS/DEF CONNECTIONS 5130 T2/T4 (50) - CAB CLIMATE CONTROL

1

84205551

HOSE ASSY.

Cab to Condensor, Incl 26

1шт.

2

84363576

HOSE ASSY.

A/C Suction, Compressor to Cab, Incl 27

1шт.

3

84363579

HOSE ASSY.,15.5mm ID x 5160mm L, SAE 20R3

Heater

1шт.

4

84363578

HOSE ASSY.,15.5mm ID x 4590mm L

Heater

1шт.

5

1301387C2

CLIP

Coated Hose Clamp

9шт.

6

84364076

SUPPORT

1шт.

7

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

8

1954736C1

HOSE CLAMP,#24

12шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

5шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

15

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

16

301803R1

SHUT-OFF VALVE

90 Degree

2шт.

17

410533A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

1шт.

18

87107102

TEE,5/8" Barb

Used With T4 Only, Use 1301342c1 For T2 Application

2шт.

18

1301342C1

FITTING

Used For T2 Only

2шт.

19

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Used For T4 Only, Not Used On T2, To Def

1шт.

20

3402330R2

LARGE HOSE

HOSE,LARGE

1шт.

21

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Used For T4 Only, Not Used On T2, To Def

1шт.

22

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

23

87015348

REDUCER,3/4"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

24

87682387

CARRIAGE BOLT,Short Sq Nk, M8 x 1.25 x 40mm, Cl 10.9

2шт.

25

131-440

PUSH-ON NUT

2шт.

26

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

27

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.
