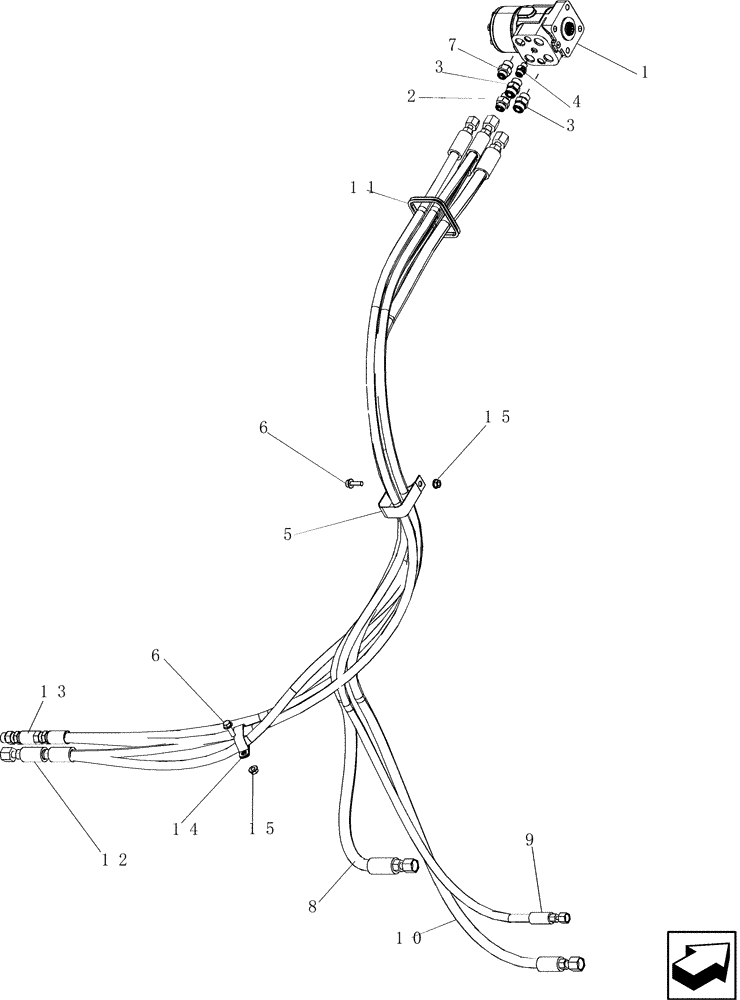

Запчасти Case IH 5130 (41.206.01) - HYDRAULICS - STEERING PUMP (41) - STEERING

1

87749828

VALVE

Steering, 320 cc/rev

1шт.

2

175170A1

ADAPTER

1шт.

3

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

4

87744594

HYD CONNECTOR

1шт.

5

1301387C2

CLIP

1шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

7

87672176

HYD CONNECTOR

1шт.

8

87365366

HOSE ASSY.

Steering Return

1шт.

9

84126067

HOSE ASSY.

Steering H.P. Signal

1шт.

10

84126068

HOSE ASSY.

Steering H.P. Supply

1шт.

11

324826A1

GROMMET

1шт.

12

87389503

HOSE ASSY.

Steering Work Front Right Pressure

1шт.

13

87389504

HOSE ASSY.

Steering Work Front Left Pressure

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
