Запчасти Case IH 5130 (41.204.10) - HYDRAULICS - STEERING CIRCUIT (41) - STEERING

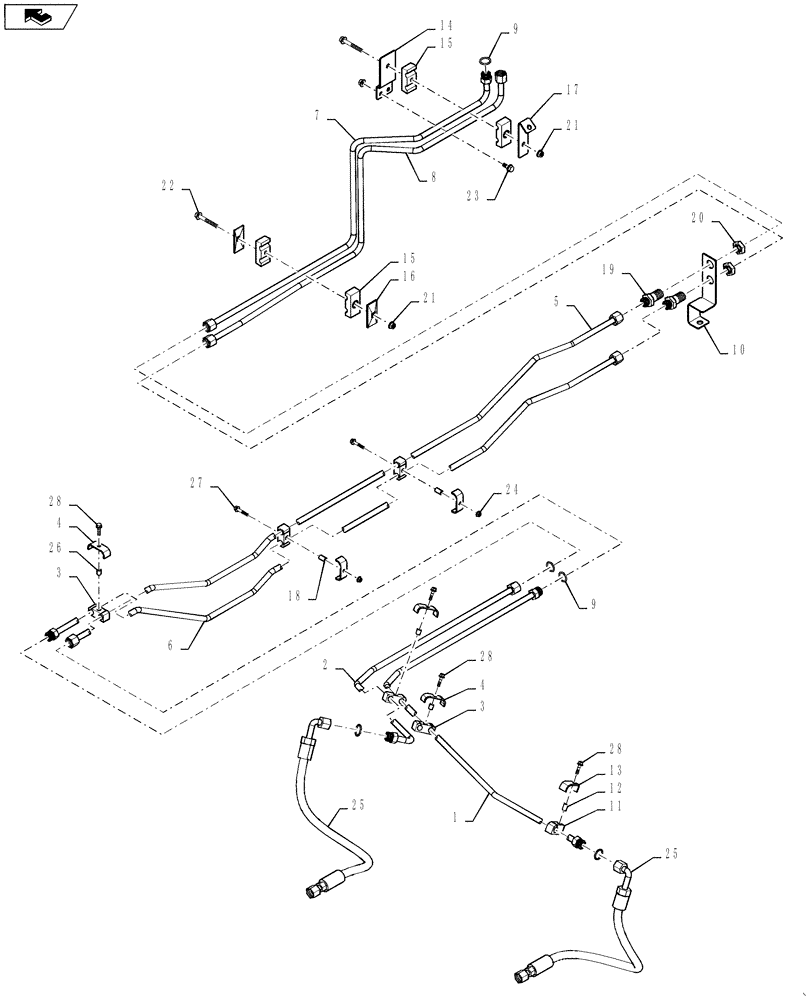

Схема запчастей Case IH 5130 - (41.204.10) - HYDRAULICS - STEERING CIRCUIT (41) - STEERING
16
21
28
3
7
15
24
1
20
21
26
28
6
19
27
3
4
8
10
13
14
2
22
home
28
17
9
25
12
23
18
9
11
4
15
25
5

Артикул

Название

Примечание

Количество

1

84130523

TUBE ASSY.

Steering Rear Right

1шт.

2

84130522

TUBE ASSY.

Steering Rear Left

1шт.

3

87589471

SPECIAL CLAMP

Tube

5шт.

4

418784A1

PLATE

Tube Clamp

5шт.

5

87673792

HYD TUBE,12.7 mm OD x 1800 mm L

Steering Middle Right

1шт.

6

87673791

HYD TUBE,12.70 mm OD x 1800 mm L

Steering Middle Left

1шт.

7

87544725

HYD TUBE,0.5" OD x 877.71 mm L

Steering Right

1шт.

8

87544724

HYD TUBE,0.5" OD x 877.71 mm L

Steering Left

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

10

87662863

SUPPORT

Steering Line Bulkhead

1шт.

11

87644666

CLAMP

1шт.

12

87644729

SPACER

Spacer Tube Clamp

1шт.

13

87644667

PLATE

Tube Clamp

1шт.

14

87389212

SUPPORT TUBE,130.99 mm L

Steering Tubes, Front

1шт.

15

87000149

CLAMP

2шт.

16

87000230

PLATE

Hose Clamp

2шт.

17

87673666

BRACKET

Feeder Lift Hose

1шт.

18

418785A1

SPACER

Sleeve, Tube Clamp

2шт.

19

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

2шт.

20

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

22

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

24

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

25

87644620

HOSE ASSY.

Steering

2шт.

26

87560349

SLEEVE

Spacer Tube Clamp

3шт.

27

857-6035

BOLT

2шт.

28

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

4шт.

Выбрано товаров: 28
