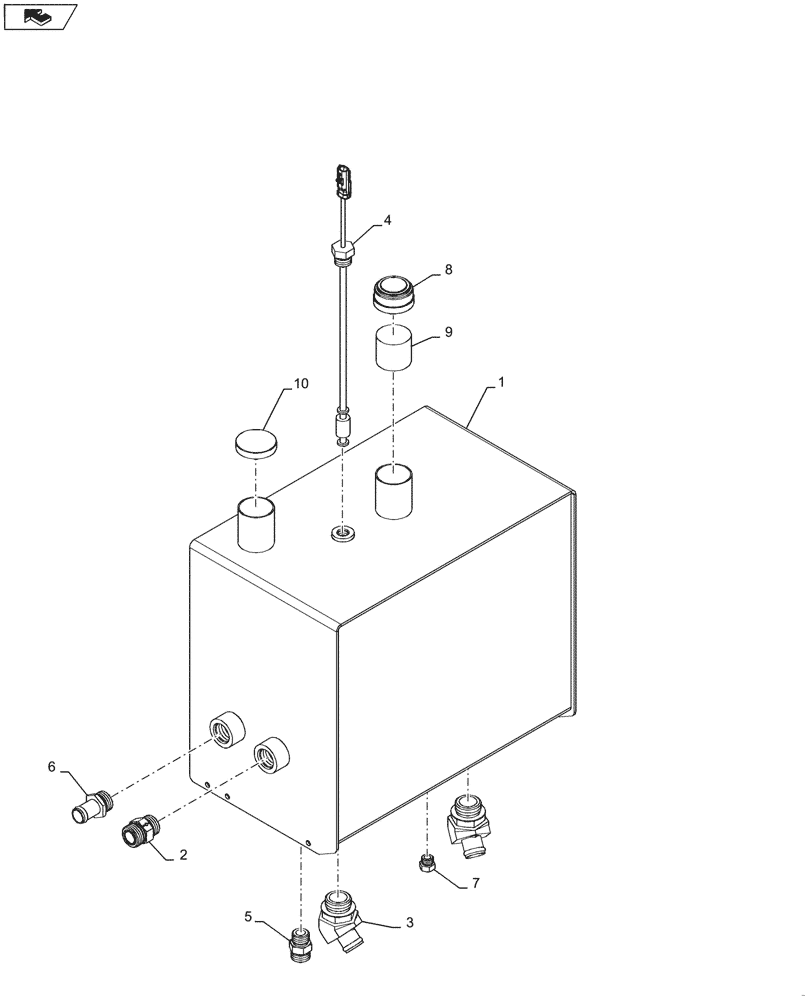

Запчасти Case IH 5130 (35.300.06) - HYDRAULICS, OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

84149674

RESERVOIR

1шт.

2

84190633

CHECK VALVE

1шт.

3

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

2шт.

4

87644162

SENSOR

Level

1шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

6

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

7

214389

PLUG,3/4" - 16 ORB

1шт.

8

87000625

COVER

1шт.

9

191116A1

BAFFLE

1шт.

10

87000624

CAP

1шт.

11

87107405

LEVEL GAUGE

(Not Shown)

1шт.

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

720060

RUBBER WASHER

2шт.
