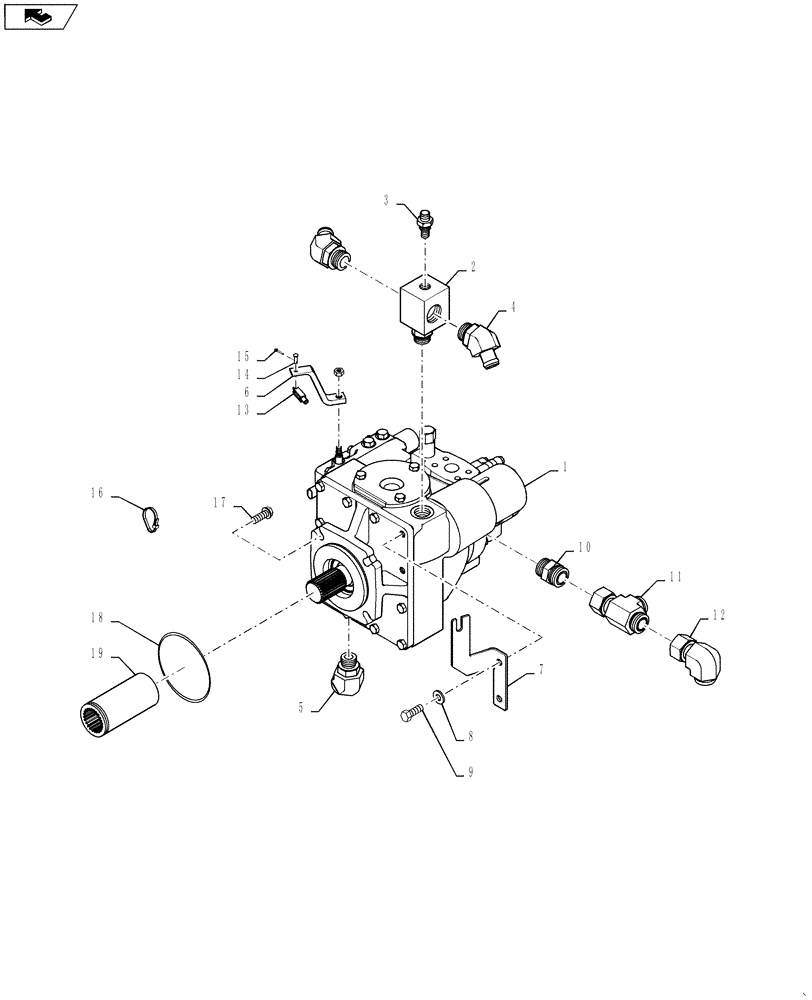

Запчасти Case IH 5130 (29.218.02[01]) - PUMP ASSEMBLY, HYDROSTATIC-MOUNTING (105CC/REV) (29) - HYDROSTATIC DRIVE

1

84148069

HYDROSTATIC PUMP,105.4 CC

105cc/Rev, Variable

1шт.

84148069R

REMAN-HYDROSTAT PUMP

5130, 6130, 7130 All TIER 4 (1/12-)

1шт.

84148069C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

84174224

TEE

Case Drain

1шт.

3

177678A1

TEMPERATURE SWITCH

Temperature

1шт.

4

87029968

HYD CONNECTOR

2шт.

5

87302733

HYD CONNECTOR

1шт.

6

184433A1

LEVER

Hyd Pump Control

1шт.

7

84279383

BRACKET

Hyd Control Cable

1шт.

8

495-81009

WASHER,.469" x 1" x .120"

2шт.

9

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

2шт.

10

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

11

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1шт.

12

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1шт.

13

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

14

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

15

280236

COTTER PIN,1/16" x 1/2"

1шт.

16

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

17

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

To PTO

4шт.

18

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

19

84292721

COUPLING

Splined

1шт.
