Запчасти Case IH 5130 (29.100.AB[02]) - HYDROSTATIC MOTOR, 105CC (29) - HYDROSTATIC DRIVE

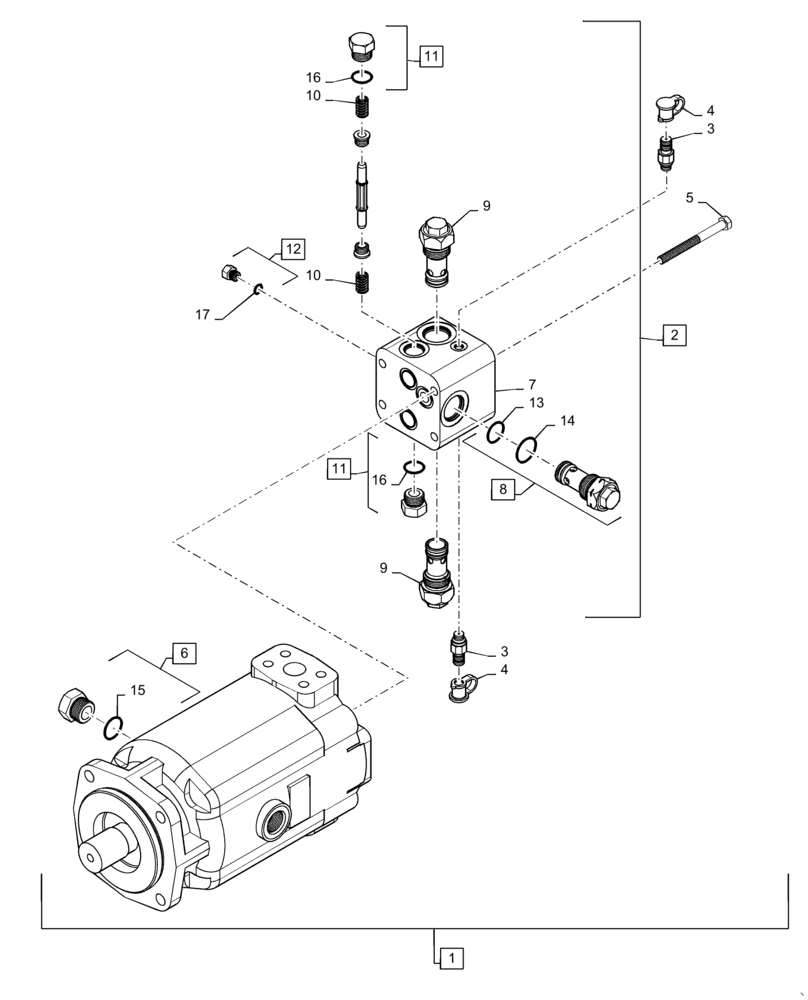

Схема запчастей Case IH 5130 - (29.100.AB[02]) - HYDROSTATIC MOTOR, 105CC (29) - HYDROSTATIC DRIVE
10
2
3
9
5
16
16
1
3
10
6
14
11
4
4
13
15
17
8
7
12
11
9

Артикул

Название

Примечание

Количество

1

87374885

HYDROSTATIC MOTOR,105.39CC

Fixed, 105cc, Incl 2 - 31

1шт.

2

87479010

VALVE

Motor Relief Manifold, Incl 7 - 12

1шт.

3

R55912

NIPPLE

Diagnostic, 1/4" ORFS

2шт.

4

H434163

DUST CAP

Diagnostic

2шт.

5

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

6

163410

PLUG,1-1/16" - 12 ORB

Incl 15

1шт.

7

NS

NOT SERVICED

Valve Body, Incl In 2

1шт.

8

140761C1

VALVE PRESSURE RELIE

Low Pressure, Incl 13 - 14

1шт.

9

84144765

VALVE PRESSURE RELIE

7 KSI

2шт.

10

145560C1

SPRING

Shuttle Valve

2шт.

11

86512512

PLUG,7/8" - 14 ORB

Incl 16

2шт.

12

9672438

PLUG,7/16" - 20 ORB

Incl 17

1шт.

13

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

403145A1

SEAL

Shaft, Not Shown

1шт.

19

34039

SNAP RING,2.50", Int, #250

Front Cover, Not Shown

2шт.

20

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

Front Cover, Not Shown

1шт.

21

403147A1

SHAFT

Motor, Not Shown

1шт.

22

142398C91

SHIM KIT

Drive Shaft, Not Shown

1шт.

23

530741R1

BEARING CUP

RH, Output Shaft, Not Shown

1шт.

24

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

RH, Output Shaft, Not Shown

1шт.

25

280651

PIN,7.86mm OD x 15.88mm L

Not Shown

1шт.

26

1980140C1

GASKET,0.38mm Thk

End Cover, Not Shown

1шт.

27

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

Not Shown

2шт.

28

280874

BOLT,Hex, 7/16" - 14 x 3", Gr 8

Not Shown

6шт.

29

37-1516

DOWEL,5/16" x 1"

Not Shown

1шт.

30

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

Not Shown

1шт.

31

140747C92

SEAL KIT

Valve Block, Not Shown

1шт.

Выбрано товаров: 31
