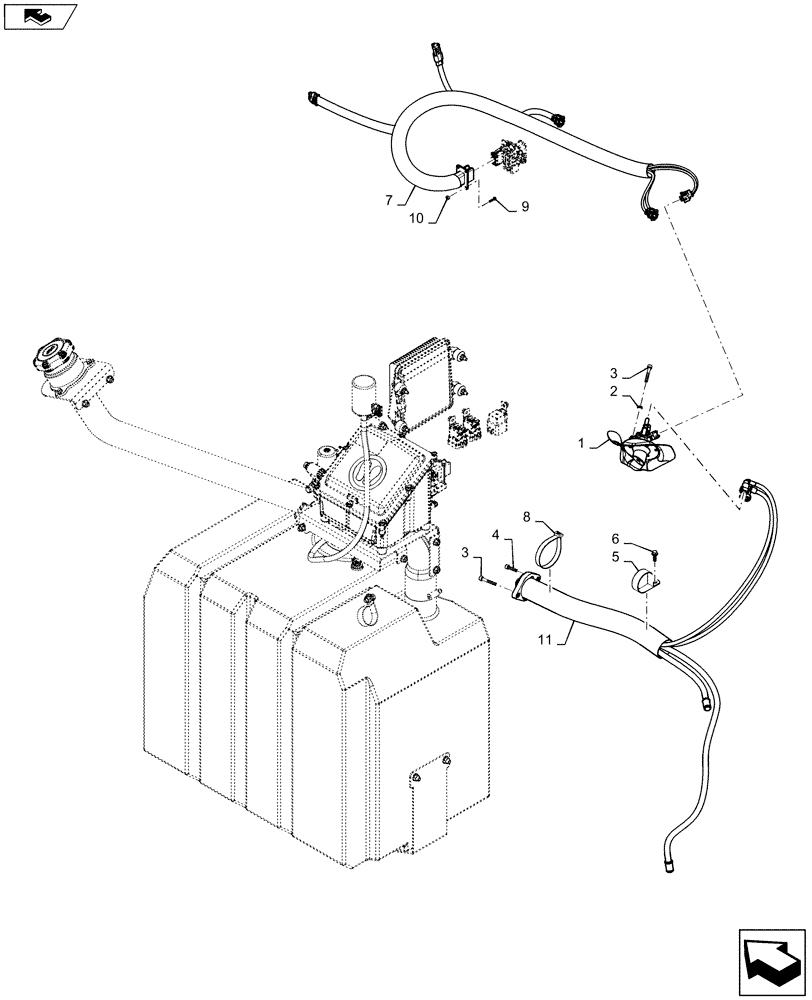

Запчасти Case IH 5130 (10.500.AG[01]) - DEF/ ADBLUE, DEF LINES, SUPPLY, CONNECTING, EXHAUST SYSTEM (10) - ENGINE

1

47511724

MODULE

DENOX DEF/ADBLUE Dosing Injector

1шт.

1

47511724R

REMAN-INJEC EMISSION

DENOX DEF/ADBLUE Dosing

1шт.

1

47511724C

CORE-INJEC EMISSION

Return Number

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

3

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

5шт.

4

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

5

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

6

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

7

84499591

WIRE HARNESS

Exhaust

1шт.

8

84266050

CABLE TIE,384mm L, Polyamide

2шт.

9

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

10

100012

NUT,M4 x 0.7, Cl 8

2шт.

11

84293028

TUBE

DEF/ADBLUE Injection Lines

1шт.
