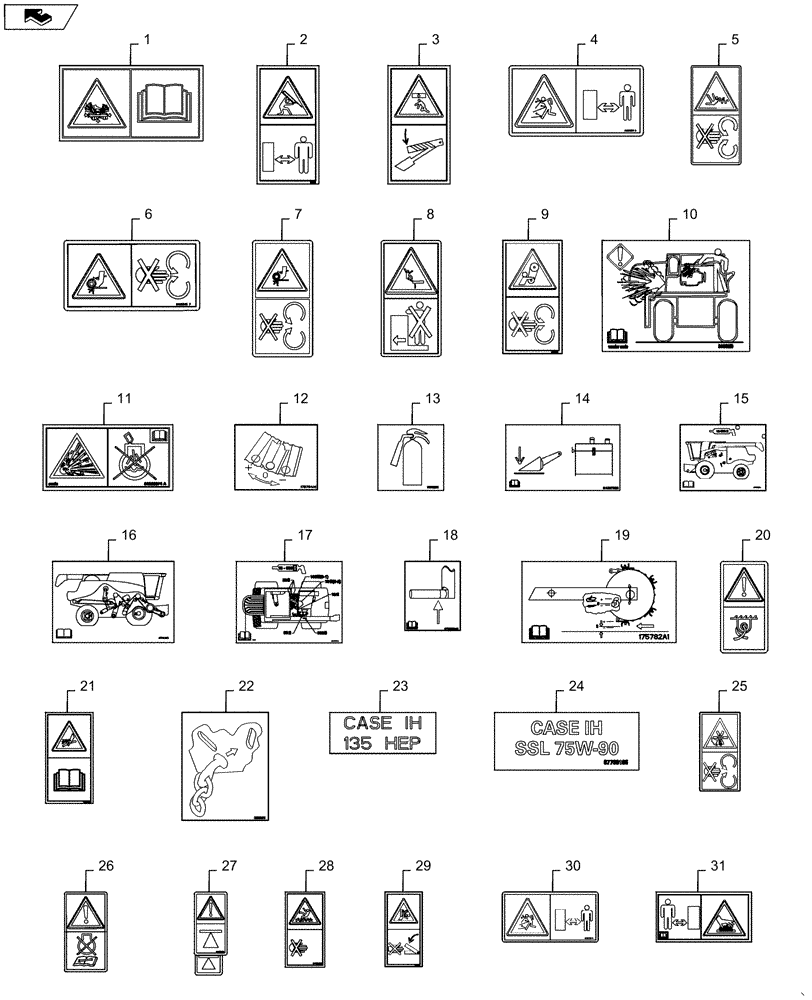

Запчасти Case IH 5130 (90.108.AB[02]) - FRAME, DECALS, WARNING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

329045A1

CAUTION DECAL

Fluid Under Pressure

1шт.

2

144371A1

WARNING DECAL

Warning (EU) Stay Clear Of Ladder

1шт.

3

144380A1

DECAL

Lock Lift Cylinder (EU)

2шт.

4

84004739

DECAL

Flying Debris

2шт.

5

84004736

DANGER DECAL

Auger Entanglement

2шт.

6

84011345

DECAL

Chain Entanglement

5шт.

7

84004734

WARNING DECAL

Safety

3шт.

8

84004732

CAUTION DECAL

Platform, No Riding

1шт.

9

144374A1

DANGER DECAL

Do Not Open, Belt Entanglement (EU)

1шт.

10

84190259

IMPORTANT DECAL

Important: Keep Engine Clean

1шт.

11

84203074

DECAL

No Ether

1шт.

12

175784A1

DECAL

Vane Position

1шт.

13

144483A1

DECAL

Fire Extinguisher

1шт.

14

84387023

DECAL

Hydraulic Oil Level

1шт.

15

87720294

DECAL

Lubrication, LH

1шт.

16

87720295

DECAL

Lubrication, RH

1шт.

17

84257100

DECAL

Lube Guide Top

1шт.

18

87568949

DECAL

Ladder Unlatch, Lower Black

1шт.

19

175782A1

DECAL

Feeder Drum Adjust

1шт.

20

84100296

DECAL

Caution, Tie Down Location

2шт.

21

344946A1

WARNING DECAL

Pressurized Vessel

1шт.

22

283528A1

DECAL

T Hook

6шт.

23

144378A1

DECAL

Case IH 135 HEP

1шт.

24

87709106

DECAL

Case IH SSL 75W-90

1шт.

25

332511A1

DECAL

Fan Hazard (EU)

1шт.

26

84004733

DECAL

Stop Engine Before Service

1шт.

27

84078384

DECAL

Jacking Position

4шт.

28

144384A1

DECAL

Do Not Enter Graintank (EU)

3шт.

29

87413244

DECAL

Pinch Point

2шт.

30

87479097

DECAL

Rotating Parts

3шт.

31

87415865

WARNING DECAL

Hot Surface Hazard (EU)

1шт.
