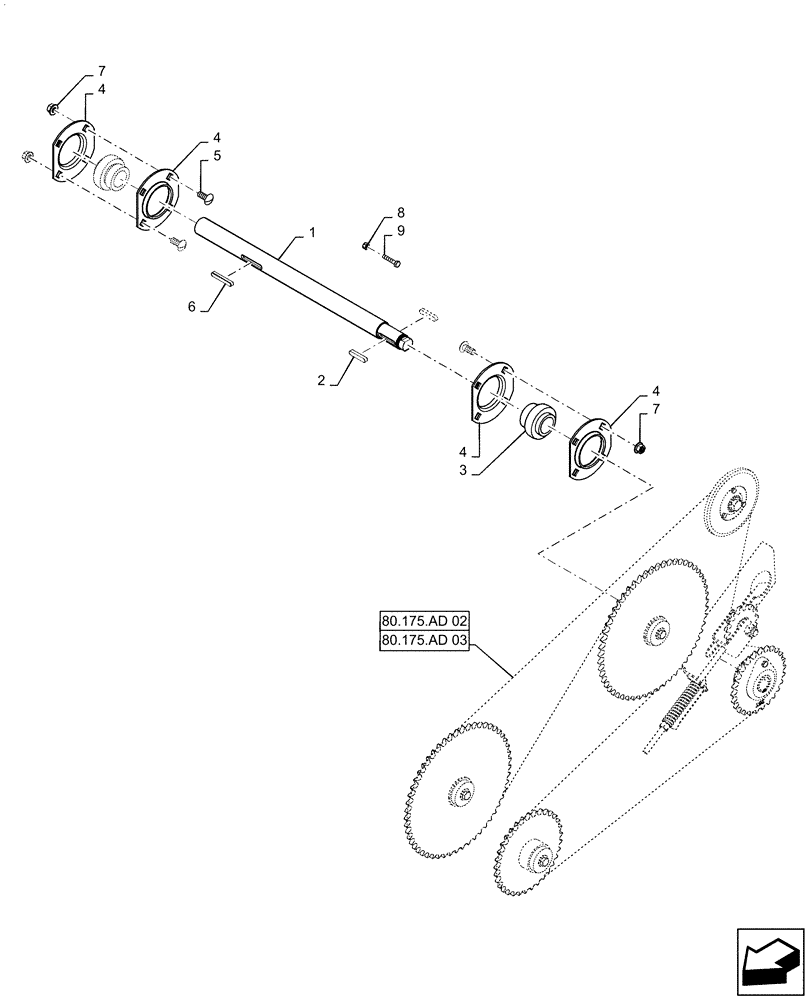

Запчасти Case IH 5130 (80.175.AD[01]) - CHAIN, UNLOADING & FLOW, DRIVE (80) - CROP STORAGE/UNLOADING

1

87555273

SHAFT

Jackshaft, Unload Drive

1шт.

2

170012

KEY,8mm W x 50mm OAL

2шт.

3

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

2шт.

4

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

80mm ID

4шт.

5

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

8шт.

6

323190

KEY,10mm x 8mm x 63mm

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

9

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

5шт.
