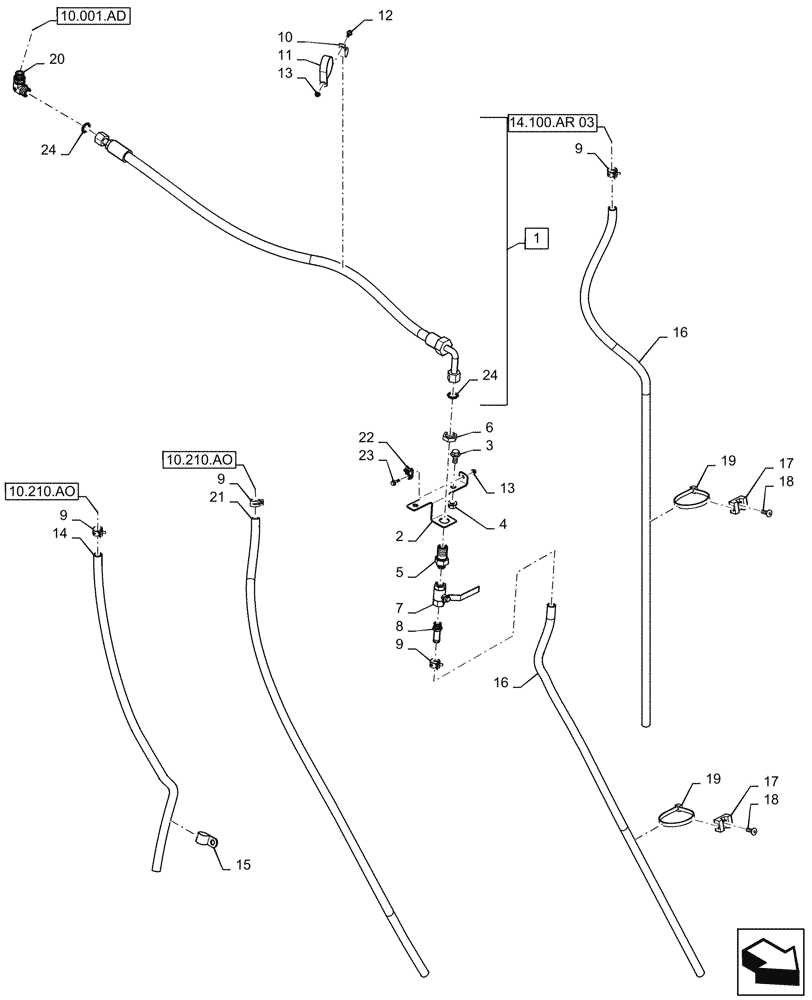

Запчасти Case IH 5130 (10.102.AW) - DRAIN LINE, OIL (10) - ENGINE

1

84311371

HOSE ASSY.,15.88mm ID x 1350mm L, SAE 100R17

Oil Drain, Incl 24

1шт.

2

84579642

BRACKET

Bulkhead Support

1шт.

3

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

5

84288936

FITTING,3/4" - 16 ORB x 1" - 14 ORFS

Bulkhead Connector

1шт.

6

201-919

BHD LOCK NUT,1" - 14

1шт.

7

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

1шт.

8

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

1шт.

9

1954736C1

HOSE CLAMP,#24

4шт.

10

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

11

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

12

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

13

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

14

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

1шт.

15

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

16

1977293C3

HOSE,15.748mm ID x 1700mm L

Drain And Breather

2шт.

17

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

9шт.

18

445394

RIVET,Pop, 3/16" x 1/2" OAL

9шт.

19

306132C1

CABLE TIE,14.5" L

13шт.

20

84562836

90 ELBOW

M22 ORR x 5/8" ORFS

1шт.

21

84364071

FLEXIBLE HOSE,15.75mm ID x 1900mm L

Drain And Breather

1шт.

22

84340333

BASE PLATE

Base, Wire Tie

1шт.

23

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
