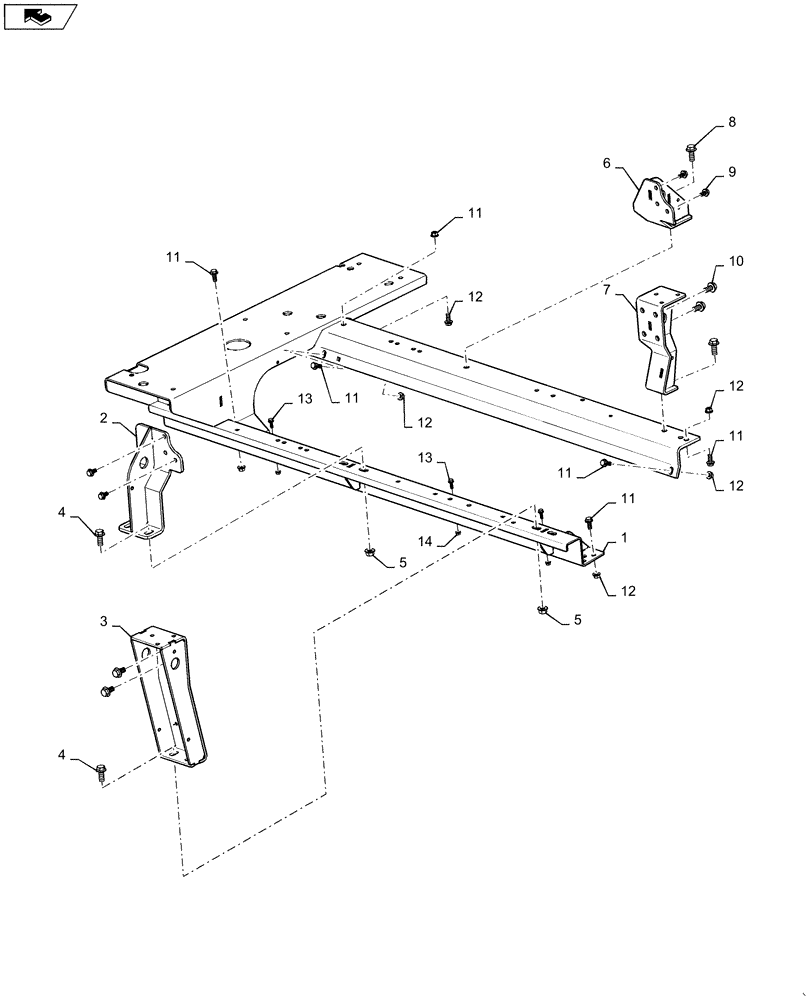

Запчасти Case IH 5130 (10.001.AK) - FRAME, ENGINE (10) - ENGINE

1

84413034

FRAME

Engine Mount

1шт.

2

84255166

BRACKET

Engine Mount, Front

1шт.

3

84239248

SUPPORT

Engine Mount, Rear

1шт.

4

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

4шт.

6

84303634

ENGINE MOUNT

Front

1шт.

7

84239281

ENGINE MOUNT

Rear

1шт.

8

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

9

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.

10

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

8шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
