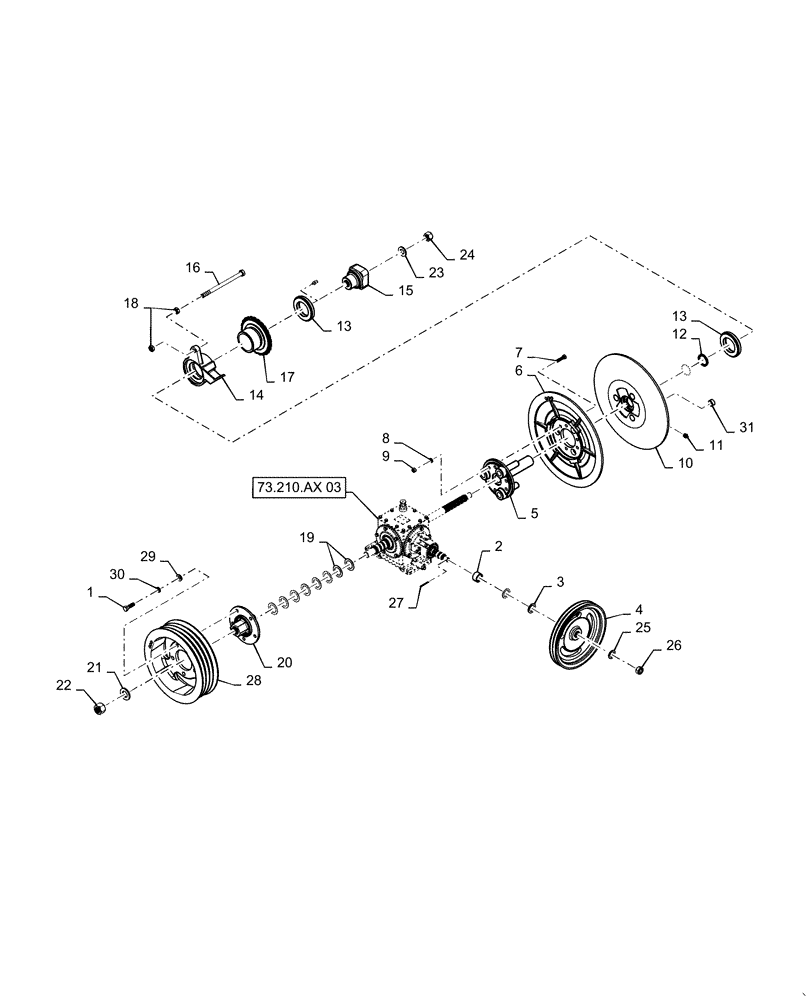

Запчасти Case IH 5130 (73.210.AX[02]) - CHOPPING UNIT GEARBOX ASSY W/ PULLEY (73) - RESIDUE HANDLING

1

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

2

87745589

SPACER

Chopper Drive Pulley

1шт.

3

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

2шт.

4

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

5

47462117

HUB

Variator, Rotor Drive

1шт.

6

87529708

PULLEY ASSY.

Fixed, Rotor Drive

1шт.

7

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

8

492-21050

LOCK WASHER,1/2"

6шт.

9

429-108

NUT,1/2"-13, G8

6шт.

10

47452377

PULLEY

Variable, Rotor Drive

1шт.

11

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

12

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

13

278927A1

THRUST BEARING,69.84mm ID x 113.79mm OD x 22.1mm W

2шт.

14

47444104

SLEEVE

Female, Variator Pulley

1шт.

15

47452379

COUPLING

Universal Joint

1шт.

16

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

17

47438886

SLEEVE

Male, Variator Pulley

1шт.

18

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

19

87313981

WASHER,1.66" ID x 2.5" OD x 0.06" Thk

Shim

1шт.

20

87677098

PULLEY ASSY.

Hub, Driven

1шт.

21

87301675

WASHER,1.38" ID x 2.5" OD x 0.25" Thk

1шт.

22

231-41120

NUT,1 1/4"-7, GB

1шт.

23

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

24

232-41316

NUT,1"-8, GC

1шт.

25

87613300

WASHER,0.94" ID x 1.75" OD x 0.18" Thk

1шт.

26

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

27

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

28

87677105

PULLEY ASSY.

Driven

1шт.

29

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

30

87016618

LOCK WASHER,M16

5шт.

31

87307839

BUSHING,30.2mm ID x 35.03mm OD x 31.75mm L

Variable Drive Pulley

3шт.
