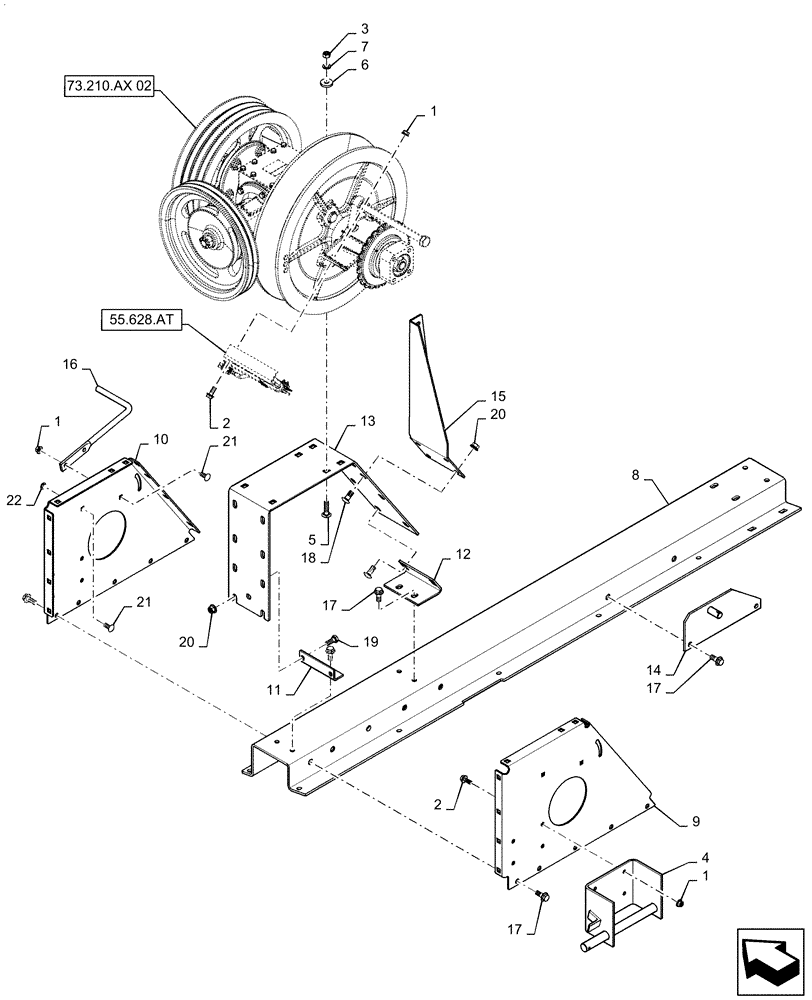

Запчасти Case IH 5130 (73.210.AX[01]) - CHOPPING UNIT GEARBOX SUPPORT (73) - RESIDUE HANDLING

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

2

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

3

337475

NUT,M12, Cl 10

6шт.

4

1315251C1

SUPPORT

Idler Pivot

1шт.

5

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

7

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

8

84153801

CHANNEL

Jackshaft Support

1шт.

9

87393437

SUPPORT

RH, Jackshaft

1шт.

10

87393438

SUPPORT

LH, Jackshaft

1шт.

11

87757057

SUPPORT

Jackshaft Support Angle

1шт.

12

87757061

SUPPORT

Jackshaft Support Angle

1шт.

13

87393439

SUPPORT

Top, Jackshaft

1шт.

14

87757085

GUIDE

Auxiliary Shift Handle Support

1шт.

15

84185358

BODY

Belt Guide Channel Support

1шт.

16

87331545

ROD

Separator Belt Guide

1шт.

17

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

16шт.

18

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

19

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

20

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

21

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

22

87698854

NUT,M10

1шт.
