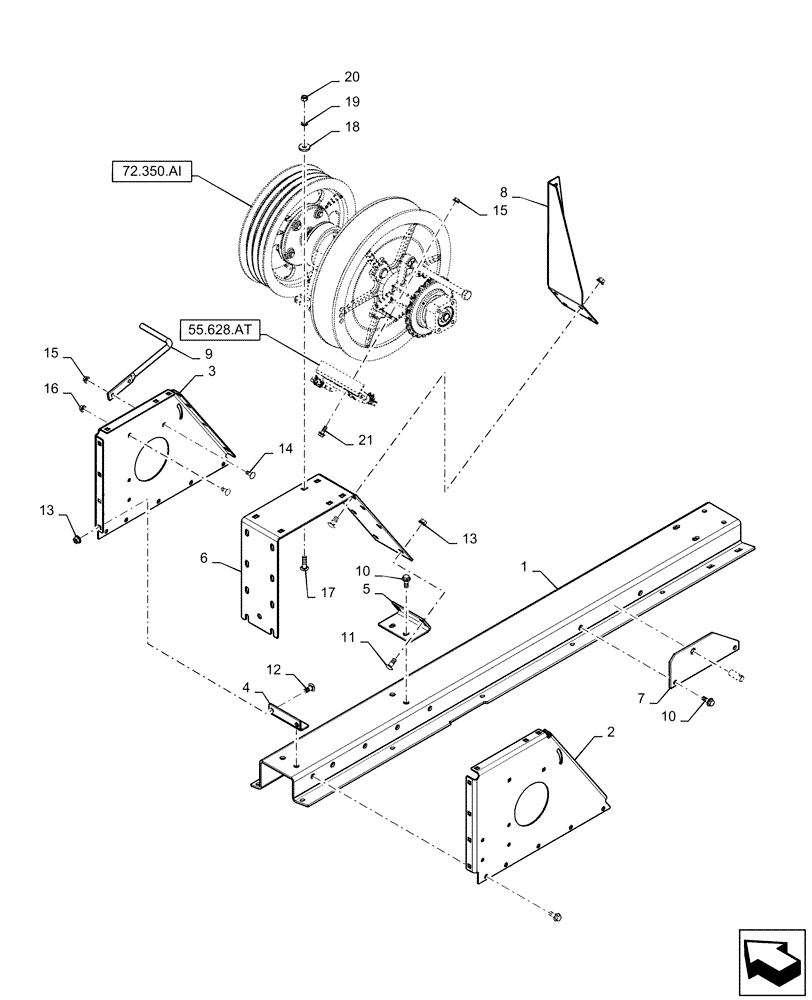

Запчасти Case IH 5130 (72.350.AJ[01]) - SEPARATOR JACKSHAFT SUPPORT (72) - SEPARATION

1

84153801

CHANNEL

Separator Jackshaft Support

1шт.

2

87393437

SUPPORT

RH

1шт.

3

87393438

SUPPORT

LH

1шт.

4

87757057

SUPPORT

Jackshaft, Angle

1шт.

5

87757061

SUPPORT

Jackshaft, Angle

1шт.

6

87393439

SUPPORT

Top, Jackshaft

1шт.

7

87757085

GUIDE

Auxiliary Shift Handle Support

1шт.

8

84185358

BODY

Belt Guide Channel Support

1шт.

9

87331545

ROD

Separator Belt Guide

1шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

16шт.

11

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

12

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

14

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

16

87698854

NUT,M10

1шт.

17

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

18

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

19

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

20

337475

NUT,M12, Cl 10

6шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.
