Запчасти Case IH 5130 (72.350.AI[01]) - SEPARATOR JACKSHAFT HOUSING W/ PULLEY (72) - SEPARATION

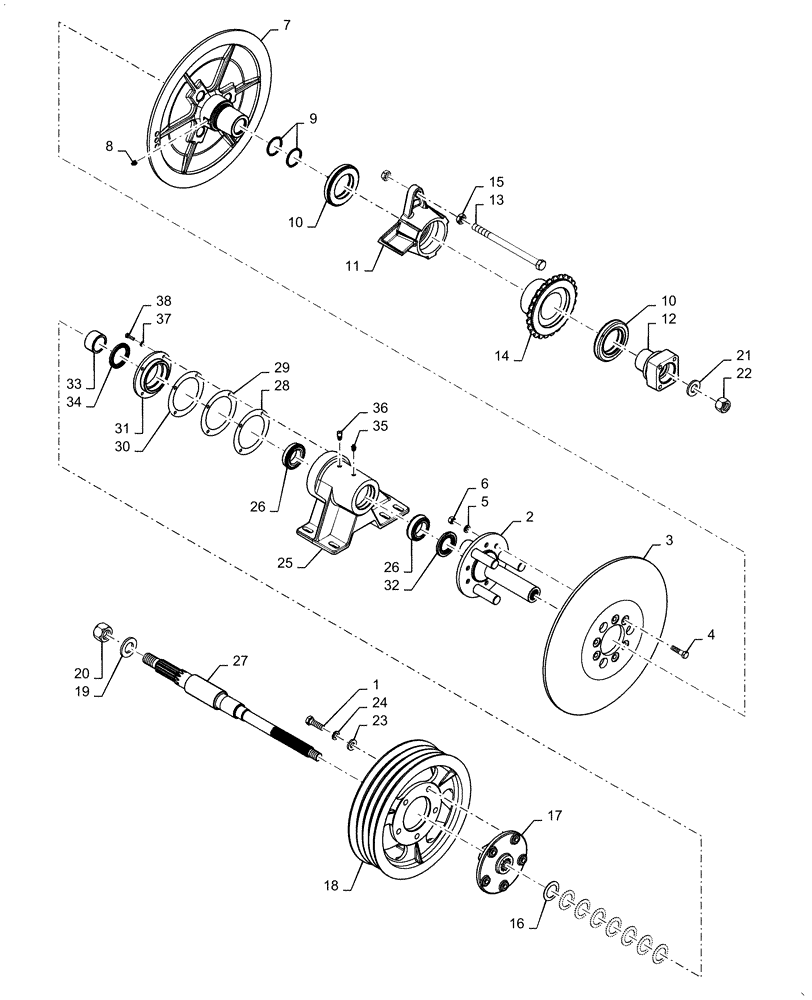

Схема запчастей Case IH 5130 - (72.350.AI[01]) - SEPARATOR JACKSHAFT HOUSING W/ PULLEY (72) - SEPARATION
3
27
22
11
7
18
6
29
12
17
15
23
16
9
5
14
1
37
34
26
10
19
10
13
32
21
33
8
26
30
31
2
24
20
35
25
4
36
38
28

Артикул

Название

Примечание

Количество

1

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

2

47462117

HUB

Rotor Drive Variator

1шт.

3

87529708

PULLEY ASSY.

Rotor Drive, Fixed

1шт.

4

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

5

492-21050

LOCK WASHER,1/2"

6шт.

6

429-108

NUT,1/2"-13, G8

6шт.

7

47452377

PULLEY

Rotor Drive, Variable

1шт.

8

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

9

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

10

87307506

BALL BEARING,82.54mm ID x 132.06mm OD x 22.86mm W

2шт.

11

47444104

SLEEVE

Variable Pulley

1шт.

12

47452379

COUPLING

Universal Joint

1шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

14

47438886

SLEEVE

Jackshaft

1шт.

15

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

16

87313981

WASHER,1.66" ID x 2.5" OD x 0.06" Thk

1шт.

17

87677098

PULLEY ASSY.

Hub, Separator, Driven

1шт.

18

87677105

PULLEY ASSY.

Separator, Driven

1шт.

19

87301675

WASHER,1.38" ID x 2.5" OD x 0.25" Thk

1шт.

20

231-41120

NUT,1 1/4"-7, GB

1шт.

21

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

22

232-41316

NUT,1"-8, GC

1шт.

23

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

24

87016618

LOCK WASHER,M16

5шт.

25

87343282

HOUSING

Separator Jackshaft Bearing

1шт.

26

87341589

BEARING ASSY,47.63mm ID x 90mm OD x 20mm W

2шт.

27

87744723

SHAFT

Separator Jackshaft

1шт.

28

87343289

SHIM

Jackshaft Bearing (.005")

1шт.

29

87343290

SHIM

Jackshaft Bearing (.007")

1шт.

30

87343291

SHIM

Jackshaft Bearing (.010")

1шт.

31

87343285

SEPARATOR

Rear Bearing Hub

1шт.

32

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Jackshaft Hub, Forward

1шт.

33

181269C1

SPACER

Jackshaft, Rear

1шт.

34

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Jackshaft Hub, Rear

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

37

492-11031

LOCK WASHER,5/16"

4шт.

38

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

Выбрано товаров: 38
