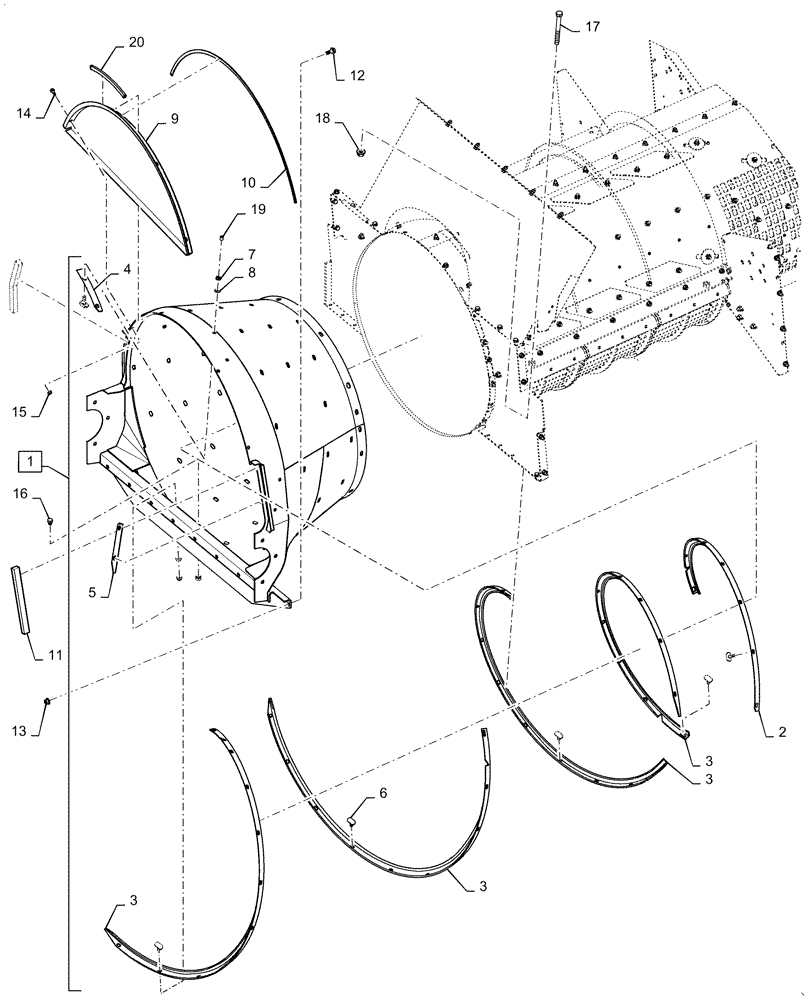

Запчасти Case IH 5130 (66.101.AP[01]) - VAR - 722888 - CONE, FEEDER (66) - THRESHING

1

47512044

CONE

Extended Wear, Rice, Incl 2 - 8

1шт.

2

418655A2

STIFFENER

Short, Extended Wear

1шт.

3

418654A2

VANE

Long, Extended Wear

4шт.

4

347913A1

VANE

Cone Extension, Extended Wear

1шт.

5

347918A1

STIFFENER

Cone Pocket, Extended Wear

1шт.

6

87106338

BOLT

Tee, M10 x 30mm, 8.8

47шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

47шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

47шт.

9

291127A1

GUARD

Rotor Door, Front, Extended Wear

1шт.

10

419957A1

SEAL

Front Rotor Door

1шт.

11

233482A1

DOOR SEAL,380mm L

Transition Cone, Sides

2шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

16

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

17

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

2шт.

18

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

19

9835349

CAP

Bolt Guard

14шт.

20

87029779

SEAL

Edge Trim, Black

1шт.
