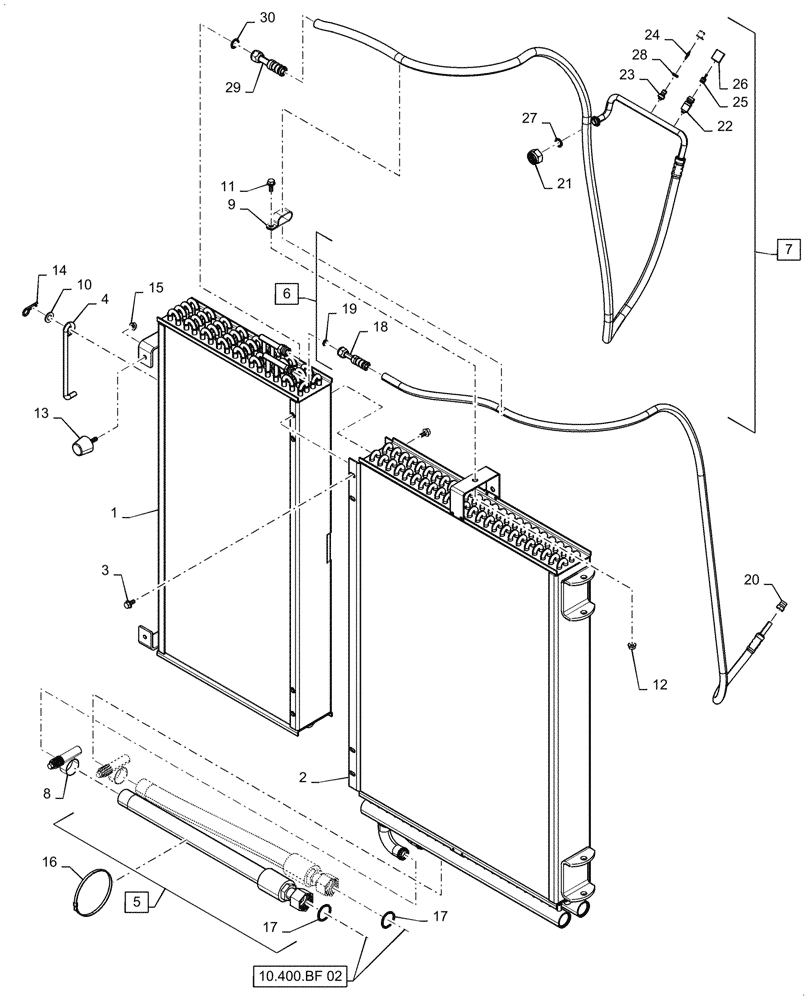

Запчасти Case IH 5088 (10.408.AO) - OIL COOLER &, CONDENSER (10) - ENGINE

1

87559914

COOLER

Condenser

1шт.

2

87559913

COOLER, OIL

Hydraulic

1шт.

2

87614591

COOLER, OIL

Hydraulic, 7088 Rice

1шт.

3

87681207

BOLT,M8 x 24.1mm, Cl 10.9

8шт.

4

87575232

ROD

Oil Cooler Prop

1шт.

5

87566737

HOSE ASSY.

Oil Cooler, Incl 17

2шт.

6

87565211

HOSE ASSY.

A/C Outlet to Cab, Incl 18 - 21

1шт.

7

87754217

HOSE ASSY.

Compressor To Condenser, Incl 22 - 31

1шт.

8

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

9

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

13

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

2шт.

14

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

306132C1

CABLE TIE,14.5" L

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

18

414223A1

FITTING

Straight W/ Female Swivel Nut

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

20

452005C1

O-RING

Fitting, 5/8" Male

1шт.

21

1250592C1

PIPE UNION NUT

Female

1шт.

22

414078A1

FITTING,M10 x 0.75 x 38.61mm L

High Side Service Port

1шт.

23

122081A1

FITTING,M10 x 1.25 x 26.43mm L

A/C Pressure Switch

1шт.

24

1250594C2

CORE

Valve

1шт.

25

414082A1

CORE

High Side Service Port Valve

1шт.

26

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Side

1шт.

27

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

28

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

29

414225A1

FITTING

Straight W/ Female Swivel Nut

1шт.

30

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.
