Запчасти Case IH 5088 (10.310.AA) - INTERCOOLER, COOLER ASSY. (10) - ENGINE

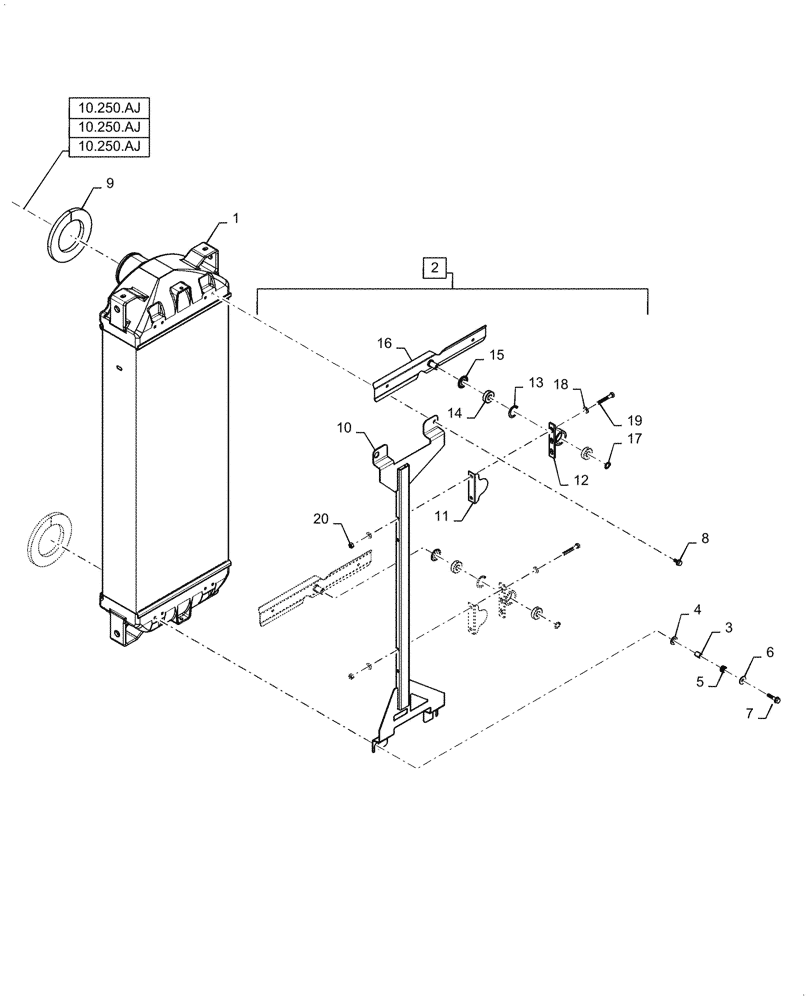

Схема запчастей Case IH 5088 - (10.310.AA) - INTERCOOLER, COOLER ASSY. (10) - ENGINE
10.250.aj
6
2
17
1
14
20
5
13
7
18
8
11
3
12
9
10
15
16
4
19
10.250.aj
10.250.aj

Артикул

Название

Примечание

Количество

1

438250A2

COOLER

CAC, 5088/6088

1шт.

1

87325480

COOLER

CAC, 7088

1шт.

2

47862006

WIPER BLADE

CAC, Incl 10 - 20

1шт.

3

87392240

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

3шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

5

87392233

COMPRESSION SPRING,17.2mm OD x 22.5mm L

3шт.

6

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

7

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

3шт.

8

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

9

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

Radiator

2шт.

10

87383453

CHANNEL

Support, Wiper

1шт.

11

87339125

BRACKET

CAC Wiper

2шт.

12

604599

SUPPORT

Bearing

2шт.

13

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

14

308803

BALL BEARING

Blade

4шт.

15

47862000

SEAL

Bearing

2шт.

16

47862130

WIPER BLADE

CAC

2шт.

17

301615

SNAP RING,M15, Ext

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

19

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 21
