Запчасти Case IH 5088 (10.210.AO) - REAR HOOD FUEL LINE & INLINE FILTER (10) - ENGINE

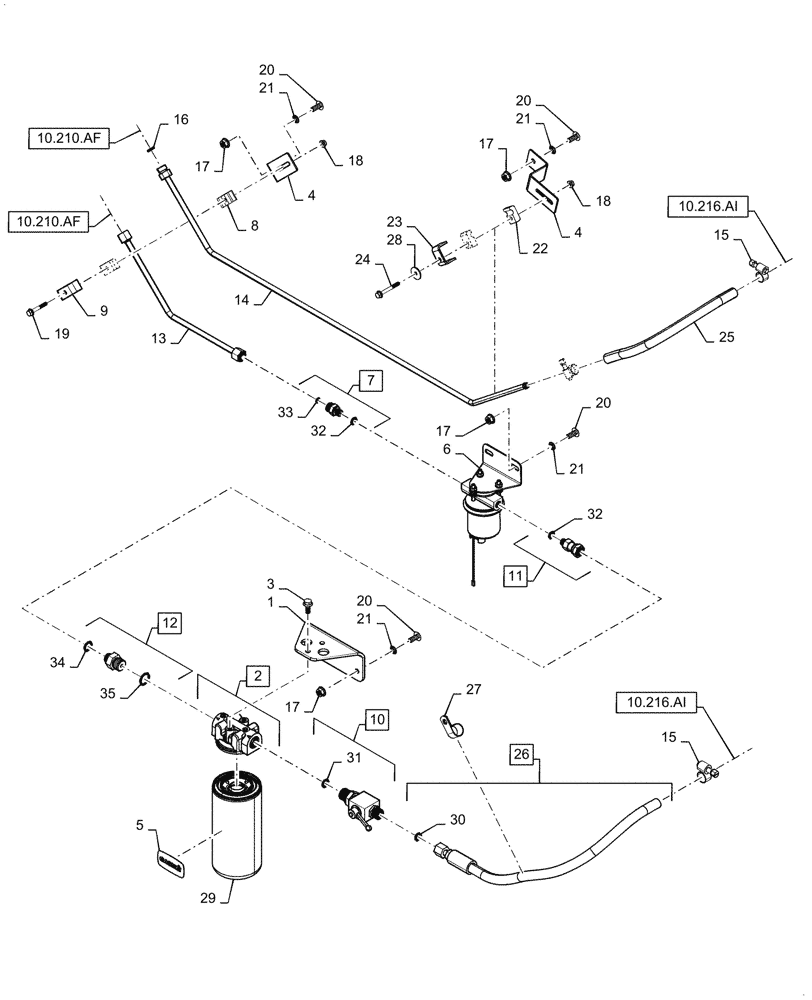

Схема запчастей Case IH 5088 - (10.210.AO) - REAR HOOD FUEL LINE & INLINE FILTER (10) - ENGINE
10.216.ai
13
12
7
8
22
33
23
18
32
3
35
27
20
17
21
34
32
21
9
4
10
1
2
24
16
20
28
17
5
11
14
17
4
17
18
26
20
6
30
29
31
25
15
21
21
15
19
20
10.210.af
10.210.af
10.216.ai

Артикул

Название

Примечание

Количество

1

87316348

BRACKET

Fuel Filter

1шт.

2

87302103

FILTER ASSY

Fuel, Incl 29

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

4

87487628

BRACKET

Fuel Line Support

2шт.

5

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

6

87756610

FUEL PUMP

Lift

1шт.

7

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

Incl 32, 33

1шт.

8

430357

CLAMP

Hose

2шт.

9

431941

SUPPORT

Hose Clamp

1шт.

10

87488037

SHUT-OFF VALVE

Fuel, Incl 31

1шт.

11

87643580

HYD CONNECTOR

Swivel, Incl 32

1шт.

12

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Incl 34, 35

1шт.

13

87487586

FUEL TUBE,0.375" OD

Supply

1шт.

14

87487585

FUEL TUBE,0.375" OD

Return Tank

1шт.

15

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

3шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

19

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

1шт.

20

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

21

131-440

PUSH-ON NUT

Retainer

6шт.

22

433008

CLAMP

Tube

2шт.

23

442340

SUPPORT

Tube Clamp

1шт.

24

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

25

84127930

HOSE

Fuel Return

1шт.

26

84126431

HOSE

Fuel Supply, Incl 30

1шт.

27

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

28

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

29

87307432

FUEL FILTER

Spin On

1шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

14453381

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

32

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
