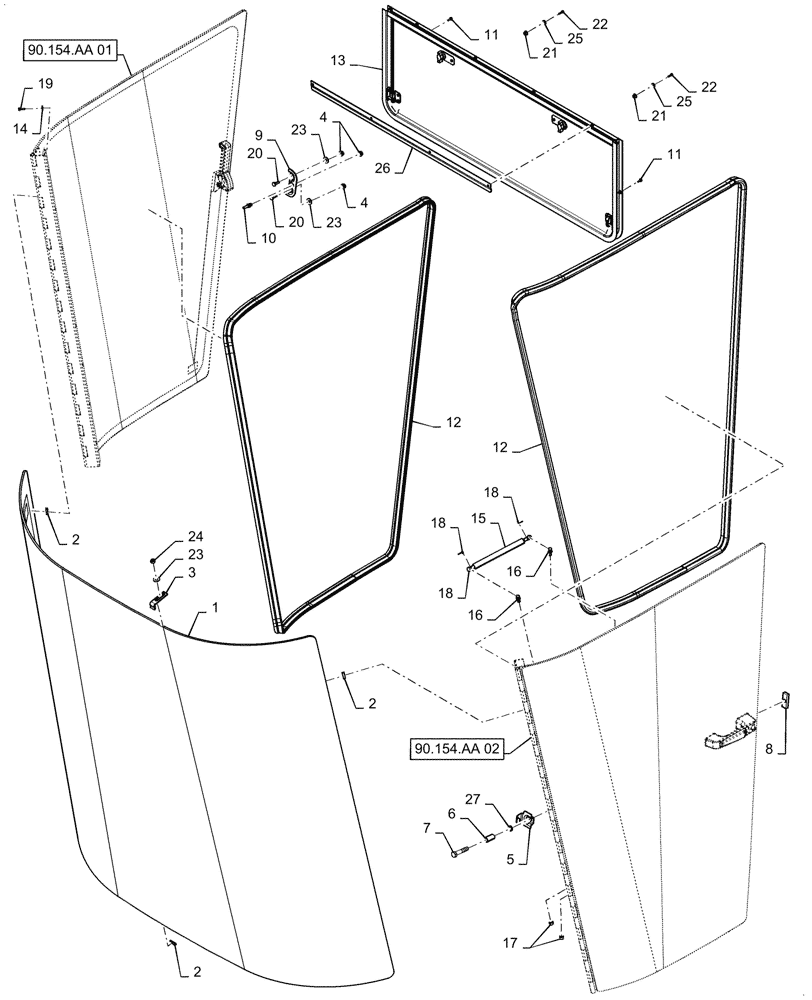

Запчасти Case IH 5088 (90.156.AL) - CAB GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

116809A5

WINDSHIELD

Glass

1шт.

2

97268C1

SPACER

Glass Bonded

28шт.

3

117707A3

CLAMP

Window

4шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

5

117716A1

PROTECTOR

Sleeve Guard

1шт.

6

117717A2

SPACER

Window

1шт.

7

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

8

117718A1

PLATE

Spacer

1шт.

9

117723A2

SUPPORT

Striker

1шт.

10

117724A1

PIN,10mm OD x 37.8mm L

1шт.

11

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

10шт.

12

234089A1

DOOR SEAL

Rubber

2шт.

13

87387979

WINDOW ASSY

Cab Rear

1шт.

14

495-31022

WASHER,#10

16шт.

15

144006A1

GAS STRUT,381mm Extended, 240mm Compressed

Damper

1шт.

16

F44882

BALL

Stud

2шт.

17

231-1445

NUT,5/16"-18, GB

2шт.

18

F44883

CLIP,DIN 71805 - S10

Retainer

2шт.

19

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

16шт.

20

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

22

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

8шт.

23

495-21038

WASHER,5/16"

8шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

25

492-11010

LOCK WASHER,#10

8шт.

26

253771A1

SUPPORT

Latch Bracket

1шт.

27

495-81017

WASHER,13.49mm ID x 19.05mm OD x 3.4mm Thk

1шт.
