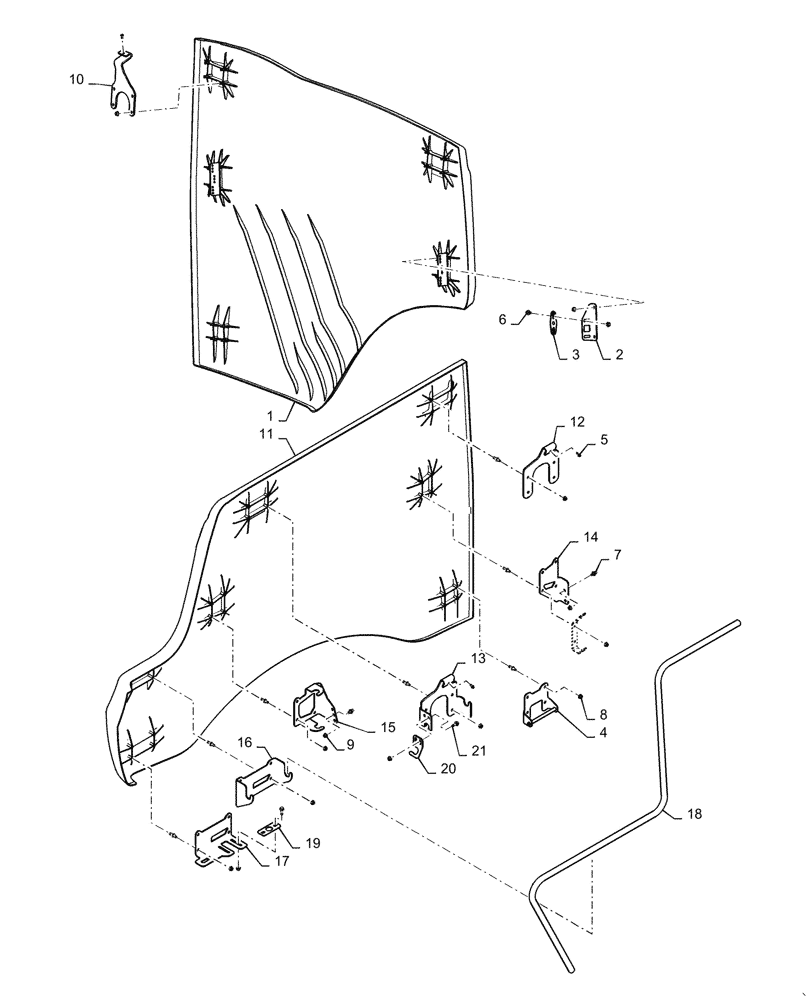

Запчасти Case IH 5088 (90.105.BH[02]) - BODY PANELS, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84322724

TRIM PANEL

Body, Front, LH

1шт.

2

87699517

BRACKET

Door Lock

1шт.

3

87676999

BRACKET

Lock Support

1шт.

4

87649465

BRACKET

Latch Support

2шт.

5

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

4шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

7

86634307

STUD

Gas Spring Mount

4шт.

8

86619801

FLANGE NUT,M8 x 1.25, Cl 8

42шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

10

87633973

BRACKET

Door Hinge

1шт.

11

87614445

PANEL,Plastic, LH Rear, Red

Body, Rear, LH

1шт.

12

87654736

BRACKET

Hinge, Front, LH

1шт.

13

87470677

BRACKET

Hinge, Rear, LH

1шт.

14

87661469

BRACKET

Gas Spring

1шт.

15

87470680

BRACKET

Gas Spring Mount

1шт.

16

87470683

BRACKET

Door, Rear, LH

1шт.

17

87649312

BRACKET

Door, Rear, Lower, LH

1шт.

18

87654332

BRACKET

Stiffener, Door, Rear, LH

1шт.

19

87649314

BRACKET

Stiffener Adjustment, Door, Rear, LH

1шт.

20

87661473

BRACKET

Tube Retainer

1шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.
