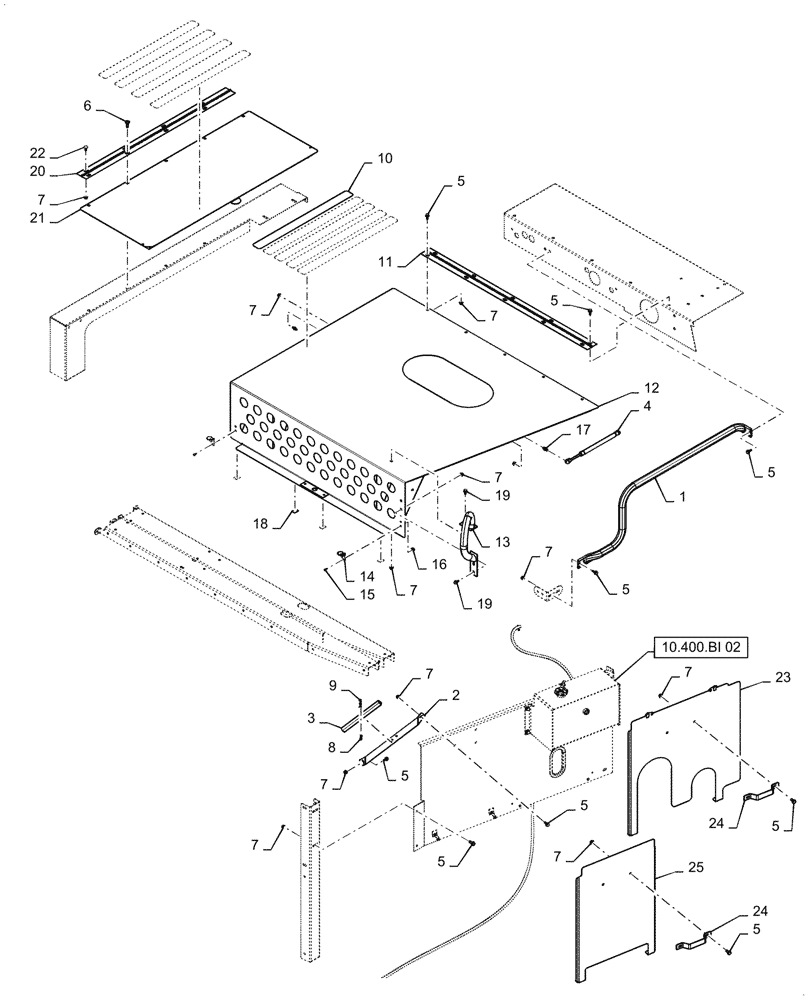

Запчасти Case IH 5088 (90.100.BJ[01]) - ENGINE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87627111

HANDRAIL

Engine Compartment

1шт.

2

87633580

STRAP

Engien Cover Support

1шт.

3

448354A1

BRACKET

Air Cylinder Lockout

1шт.

4

446346A1

GAS STRUT

Cylinder Engine Door Lift

2шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

22шт.

6

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

8

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

9

473443R1

COTTER PIN

Internal

1шт.

10

D80270

ANTI-SKID STRIP,635mm / 25 Inch

9шт.

11

442774A2

HINGE

Engine Cover Door

1шт.

12

87727317

DOOR ASSY.

Engine Cover

1шт.

13

445183A2

HANDRAIL

Engine Service Deck

1шт.

14

764071C2

BRACKET

Dood PNL Hook

2шт.

15

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

4шт.

16

86507064

FLANGE NUT,M5 x 0.8

4шт.

17

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

18

86984222

PAD

Adhesive Back

4шт.

19

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

20

87587645

HINGE

Rotor Drive Cover Door

1шт.

21

87679326

DOOR ASSY.

Rotor Drive Cover

1шт.

22

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

23

87476842

SHEET METAL

Engine Air, RH, Serial Range: -Y9G002423

1шт.

23

84215100

SHEET METAL

Engine Air, RH, Start Serial: Y9G002423

1шт.

24

87686906

LATCH

Door Handle

2шт.

25

87680121

SHEET ASSY.

Engine Air, LH

1шт.
