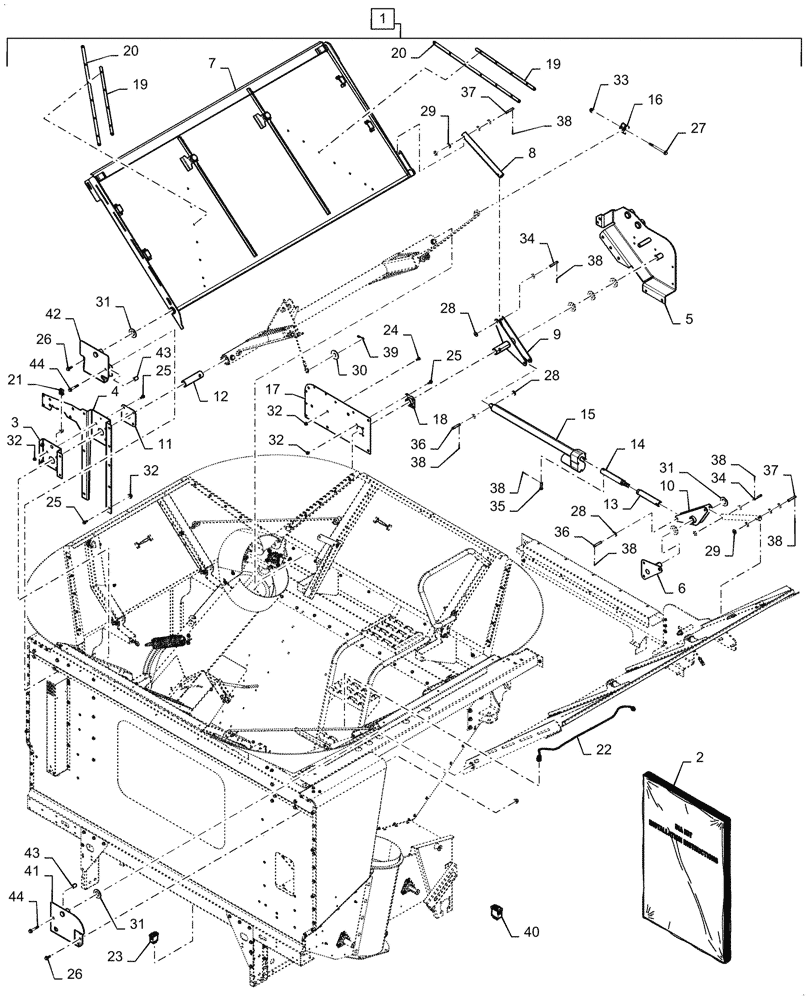

Запчасти Case IH 5088 (88.100.80[03]) - DIA KIT, GRAIN TANK COVER (88) - ACCESSORIES

1

47423100

SERVICE KIT

Grain Bin Access Cover, Incl 2 - 44

1шт.

2

47495360

INSTRUCTION

Sheet

1шт.

3

84369496

BRACKET

Rockshaft, Front

1шт.

4

84383903

BRACKET

Rockshaft, Front

1шт.

5

47423996

BRACKET

Tank Cover, Rear RH

1шт.

6

87619951

BRACKET

Tube Support

1шт.

7

87556597

COVER ASSY

Grain Tank, RH

1шт.

8

87731370

TUBE,25.4 mm ID x 34.925 mm OD x 400 mm L

Top Link, Tank Cover

2шт.

9

87720937

LINK ASSY.

Lower W/ Bearing, RH

1шт.

10

87731372

LINK ASSY.

Tank Cover, Lower LH

1шт.

11

87631278

PLATE ASSY.

Rockshaft Retaining

1шт.

12

87726831

TUBE,31.7729 mm DIA

End, Front

1шт.

13

87740256

BAR ASSY.

Actuator Extension, Linkage Side

1шт.

14

87740258

BAR ASSY.

Actuator Extension, Actuator Side

1шт.

15

84181862

ACTUATOR

Heavy Wall Tube

1шт.

16

87631786

CHANNEL

Wear

2шт.

17

87727319

SUPPORT ASSY.

Tank Cover, Rear RH

1шт.

18

87710467

SUPPORT ASSY.

Rockshaft W/ Bushing

1шт.

19

87740262

STRAP

Corner, 250BU

2шт.

20

87727124

STRAP

Backing, Corner

2шт.

21

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

22

84368991

WIRE HARNESS

Grain Tank Covers

1шт.

23

84370691

SWITCH ASSY

Rocker, Grain Tank Covers

1шт.

24

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

6шт.

25

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

18шт.

26

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

27

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

28

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

8шт.

29

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

8шт.

30

495-61066

WASHER

.656" x .750" x .100"

1шт.

31

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

7шт.

32

86050279

FLANGE NUT,M10 x 1.5, Cl 10

24шт.

33

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

34

84522947

HEADLESS PIN,10mm OD x 70mm L

2шт.

35

84056380

CLEVIS PIN,12mm OD x 50mm L

1шт.

36

84522949

HEADLESS PIN,12mm OD x 70mm L

2шт.

37

84522945

HEADLESS PIN,12mm OD x 75mm L

2шт.

38

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

13шт.

39

394818

COTTER PIN,M5 x 25

1шт.

40

87641192

SWITCH ASSY

Grain Tank Cover

1шт.

41

87727126

BRACKET

Tank Cover, Front, LH

1шт.

42

87727129

BRACKET

Tank Cover, Front, RH

1шт.

43

87686085

SPACER

Front Stopper

2шт.

44

87698845

BOLT,M12 x 70, Cl 10.9

2шт.
