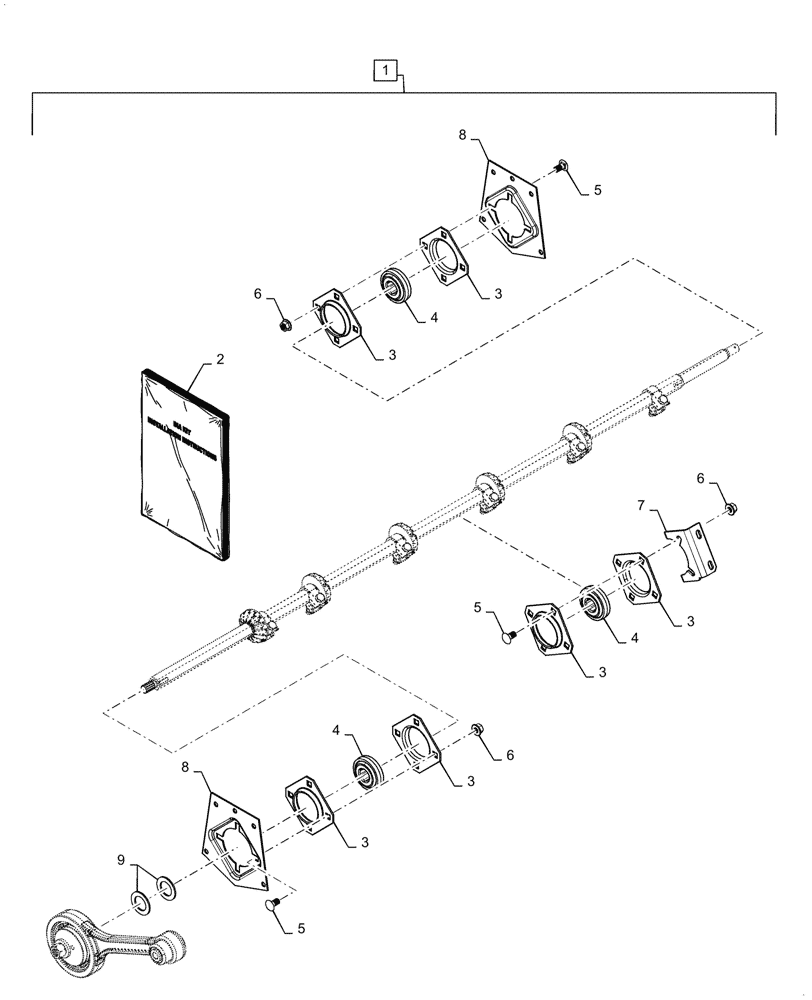

Запчасти Case IH 5088 (88.100.74[05]) - DIA KIT, HEAVY DUTY SHAKER BEARING (88) - ACCESSORIES

1

84368113

SERVICE KIT

HD Shaker Bearing Update, Incl 2 - 9

1шт.

2

84368114

INSTRUCTION

Sheet

1шт.

3

1307583C1

FLANGED BEARING

80mm, 4 Bolt

6шт.

4

87491115

BALL BEARING,28.6mm Hex x 80mm OD x 28mm W

3шт.

5

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

12шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

7

84171883

SUPPORT

Auger Drive Center Bearing

1шт.

8

87491853

PLATE

Shaker Shaft Bearing

2шт.

9

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

2шт.
