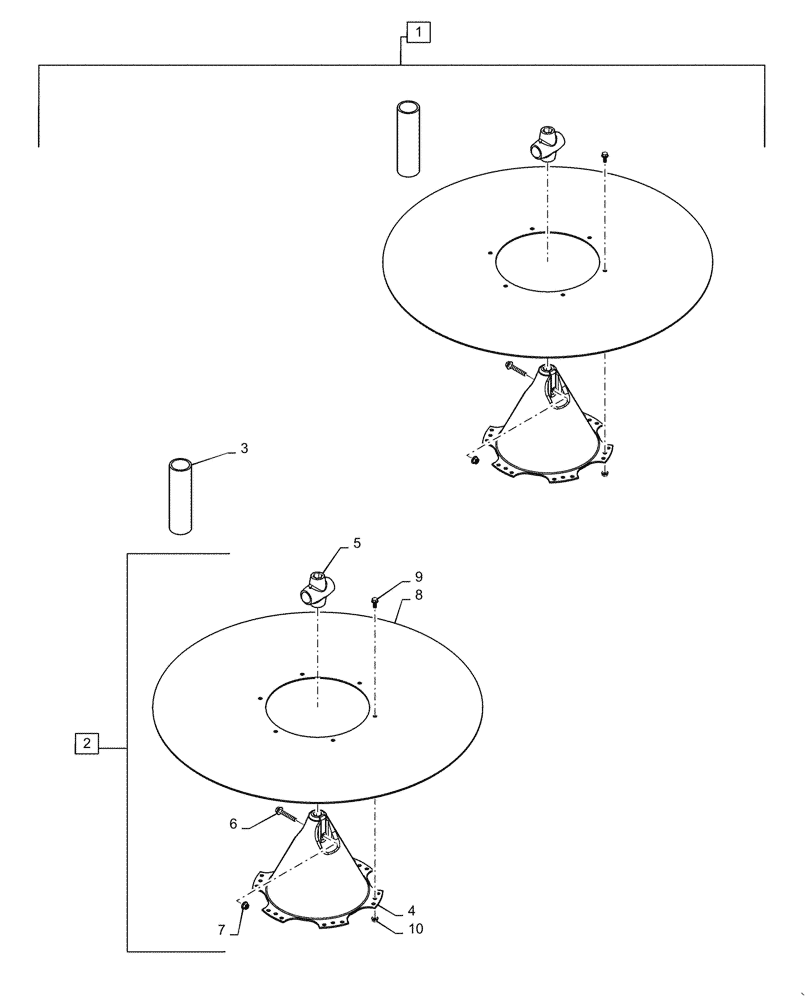

Запчасти Case IH 5088 (88.100.73[02]) - DIA KIT, DISC, CHAFF SPREADER (88) - ACCESSORIES

1

84303526

REPAIR KIT

Smooth Spreader Disc, Incl 2 - 3

1шт.

2

84303517

DISC

Assy, Smooth Spreader, Incl 4 - 10

2шт.

3

87751662

PLASTIC-RUBBER TUBE,60.32 mm OD x 212 mm L

2шт.

4

47442301

SUPPORT

Straw Spreader Cone, 362mm OD

1шт.

5

87648715

SHAFT

Detent Assy, Straw Spreader, 343.1mm OAL x 100.3mm OD

1шт.

6

87656139

BOLT,M10 x 70.4mm, Cl 10.9

M10 x 60mm OAL, Cl 10.9

1шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

8

84303518

DISC

Smooth Spreader, 902mm OD x 284mm ID

1шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.
